PP-9122
產品介紹
01

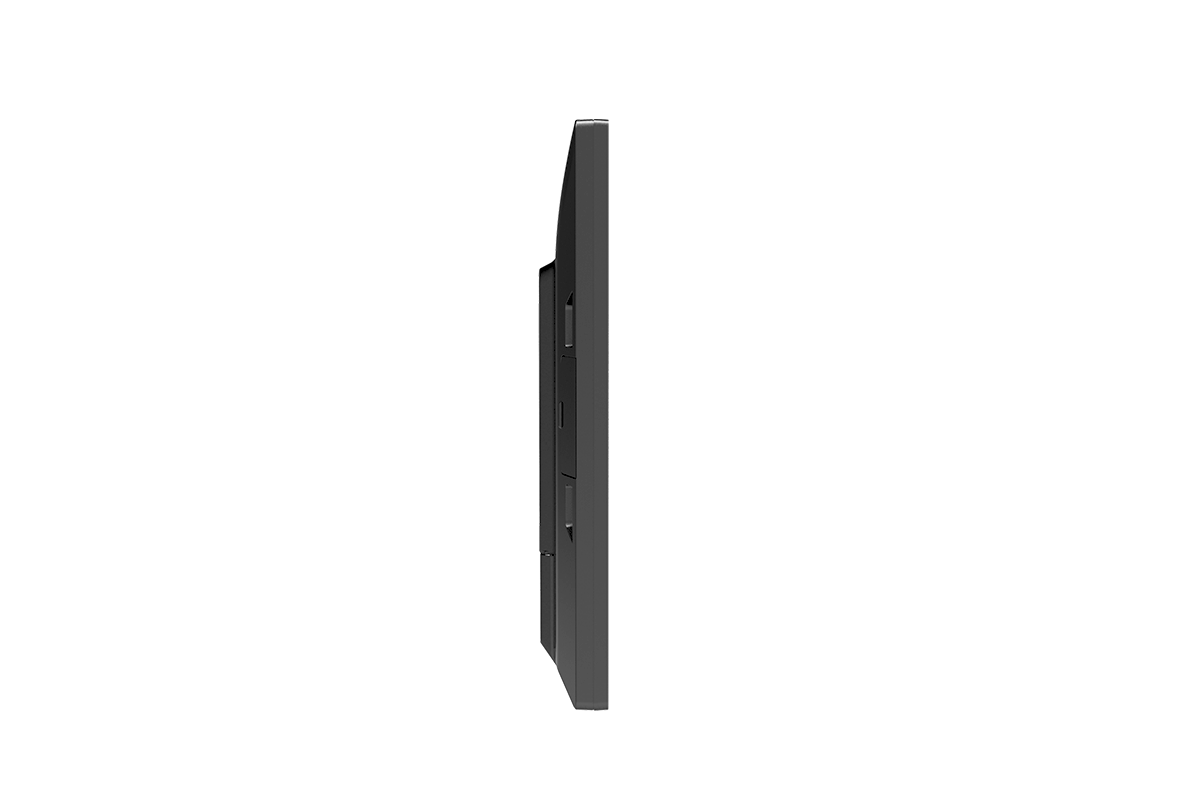

22" Fanless Panel PC
AerPPC PP-9122W is an ultra slim modular All-in-One panel PC. It' s fanless design offer you a silent and dust free operating environment.
- Platform: Android OS
- Processor: RK-3288 Quad-Core Cortex A17
- System Storage: eMMC 16GB ; External Micro SD
02

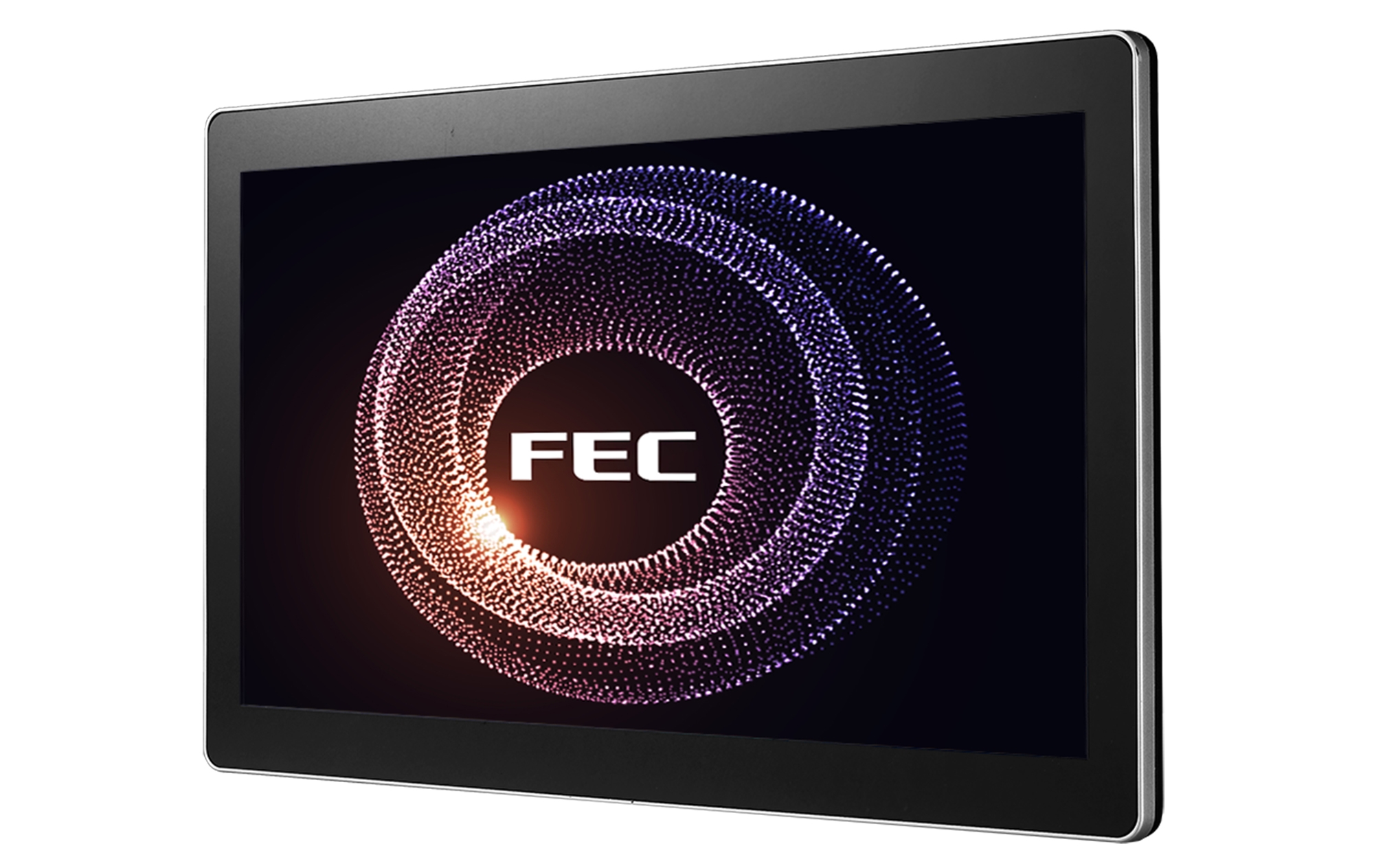

Digital Information Signage
No matter using AerPPC or AerMonitor, FEC 22 inch series are beautiful displays with high resolution screens. With universal VESA wall mount design, they can be easily mounted on any flat surface!
03

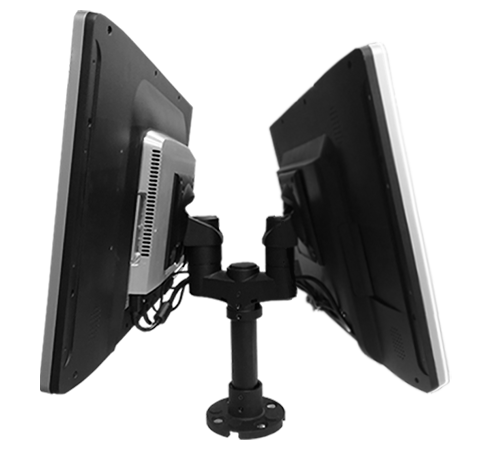

Dual Screens, Double Benefit
With FEC unique dual pole, the main panel pc can integrate with a 2nd touch screen when using as a POS system to interact with customers.
All the transaction details & campaign videos / photos can be shown on the screen at the same time!
規格
處理器
- RK-3288 Quad Core Cortex A17 1.6Ghz
記憶體
- 2GB DDR3 On Board
儲存裝置
- 16GB Built-in eMMC
無線裝置
- WIFI 802.11 ac & BT 4.2 (Optional)
喇叭
- 2 x 2W Internal Speaker
顯示器
- 22” TFT, 1920 x 1080
觸控
- True-Flat PCAP
亮度
- 250 nits
平均故障間隔時間
- 50K Hours
電源供應
- 20V / 90W or 20V / 130W External Adapter
作業系統
- Android 8.1 Oreo

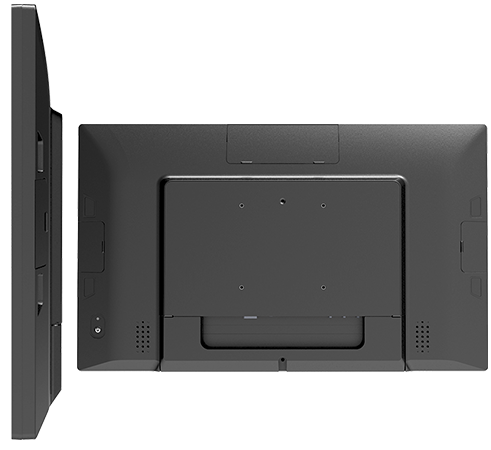

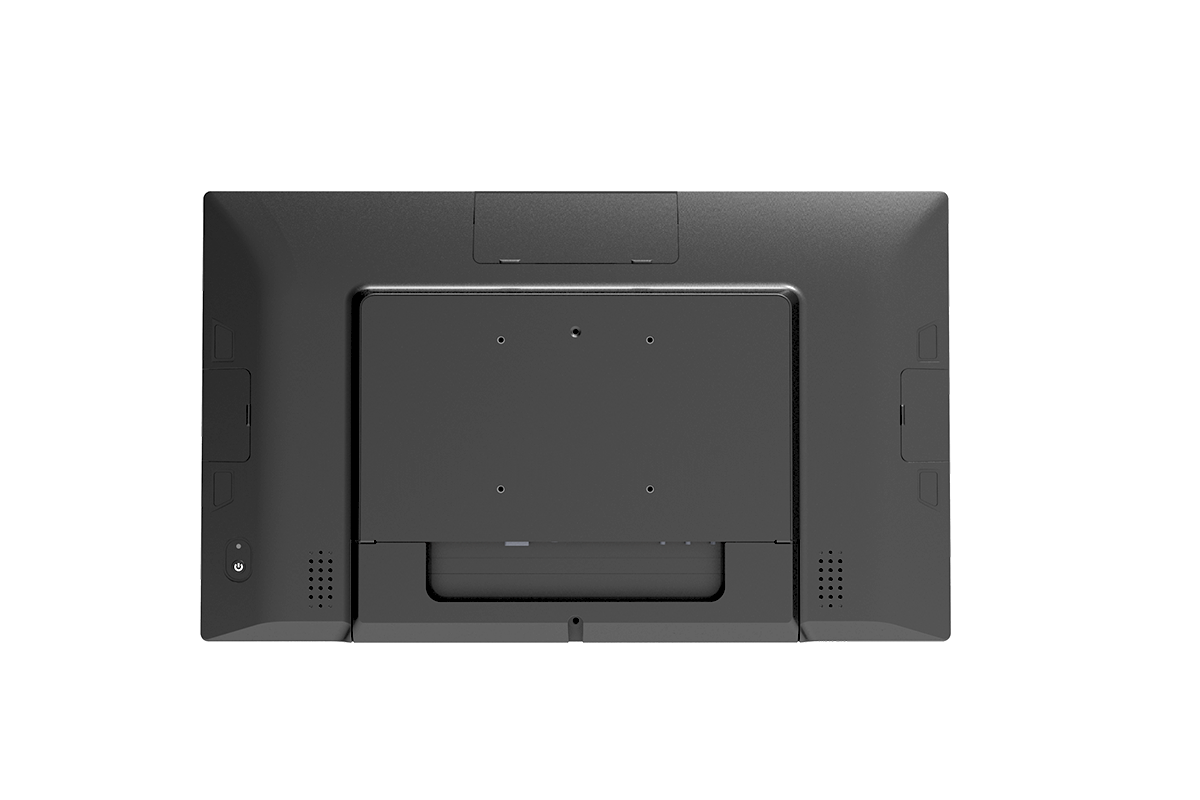

壁掛
- VESA 100 x 100 mm
認證
- FCC / CE Class B
外觀
- Aluminum Die-casting + Plastic
- Black with Silver Trim
溫度
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
尺寸 (寬 x 高 x 深)
- Product: 530 x 338 x 49 mm
- Carton: 652 x 463 x 212 mm
重量
- Net: 5.7 Kg
- Gross: 7 Kg
連接埠
- 2 x RJ45 (COM1 & COM2 ) RS232 with 0V / 5V / 12V
- 3 x USB 2.0; 1 x USB 3.0 (OTG)
- 1 x RJ11 Cash Drawer (12V / 24V)
- 1 x RJ45 GigaLAN
- 1 x Video Port
- 1 x 20V DC Input
- 1 x SD/TF Card Slot (Max: 64GB)
- 1 x Recovery Button
選擇搭配
- 2 x USB 2.0
- 1 x DB9 (COM3)
- 1 x 24V DC Output
