FEC introduces New panel pc, PP-1120W, which's small and lightweight.
PP-1120 is suitable for businesses which has space limitations and need basic POS machine functions. It can provide peripheral devices with three USB interfaces and wireless networking. The main core architecture is Quad-core Cortex-A17 of RK-3288

01

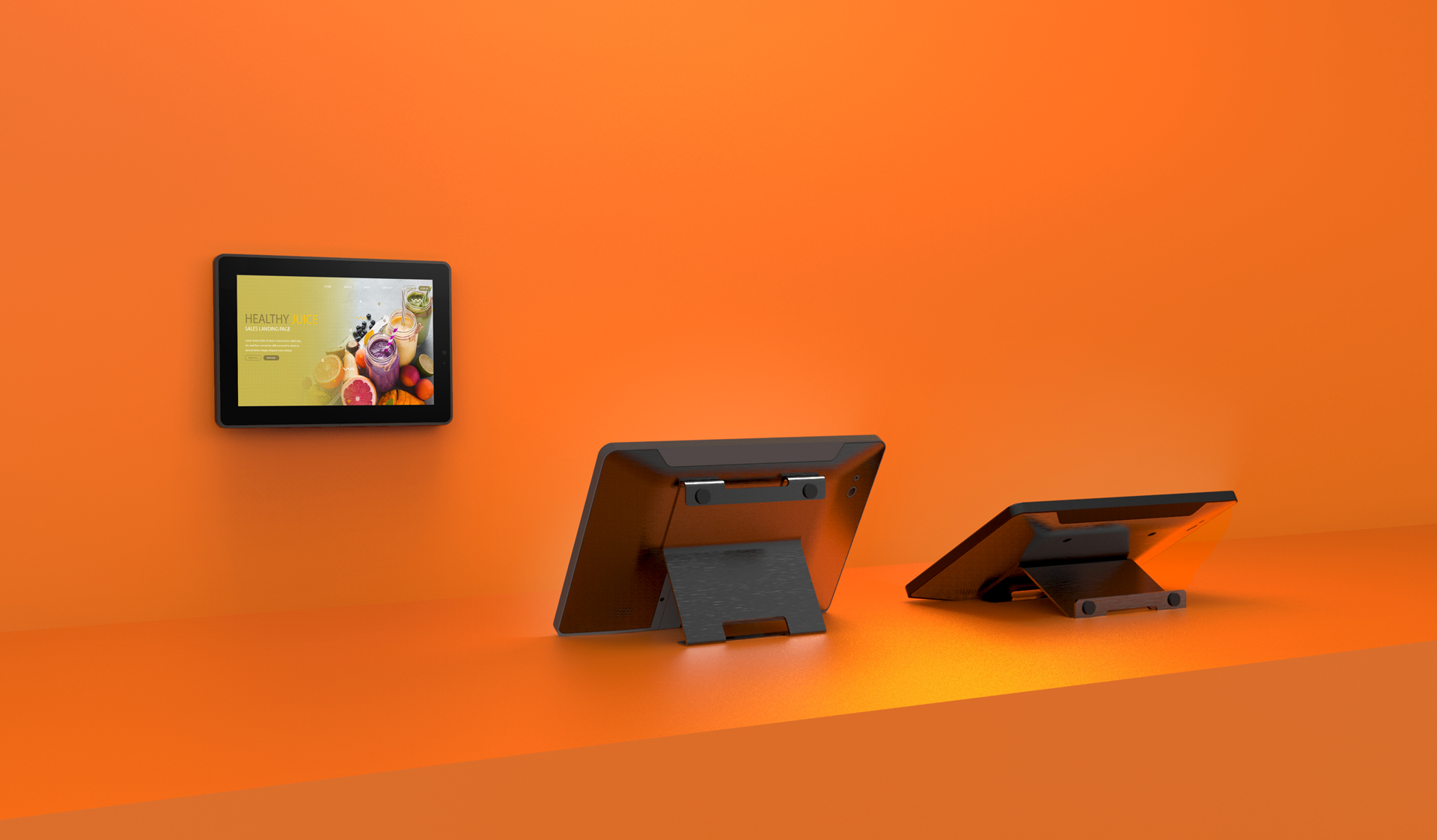

Flexible Position

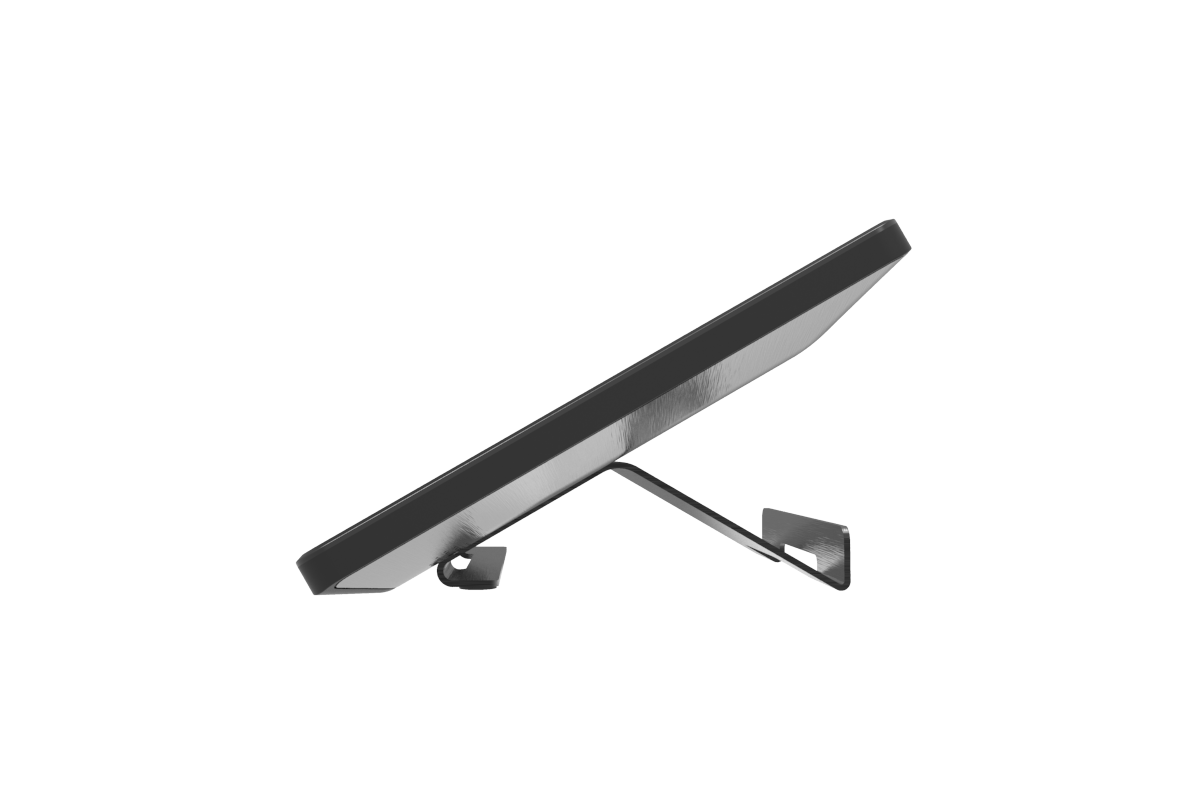

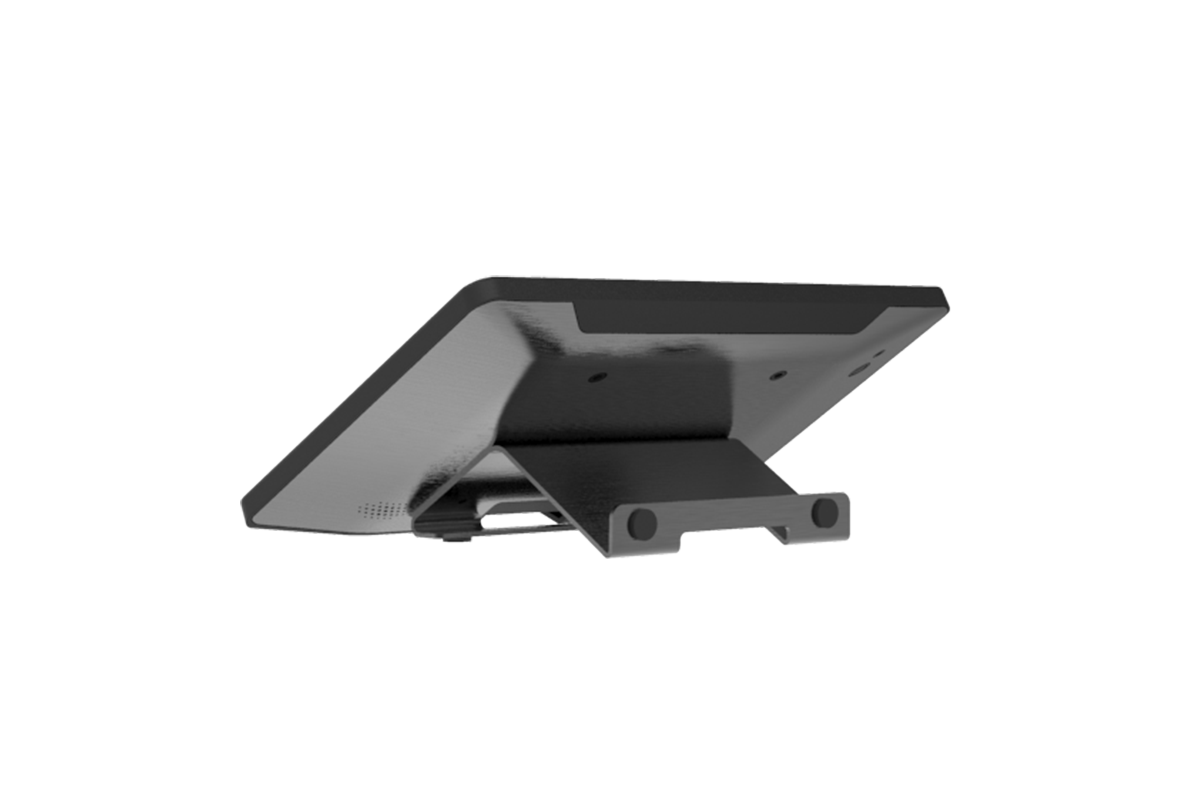

PP-1120W can be placed on a desktop with 30 or 60 degrees or with 100 x 100 vesa for wallmount options.

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-1.png
02

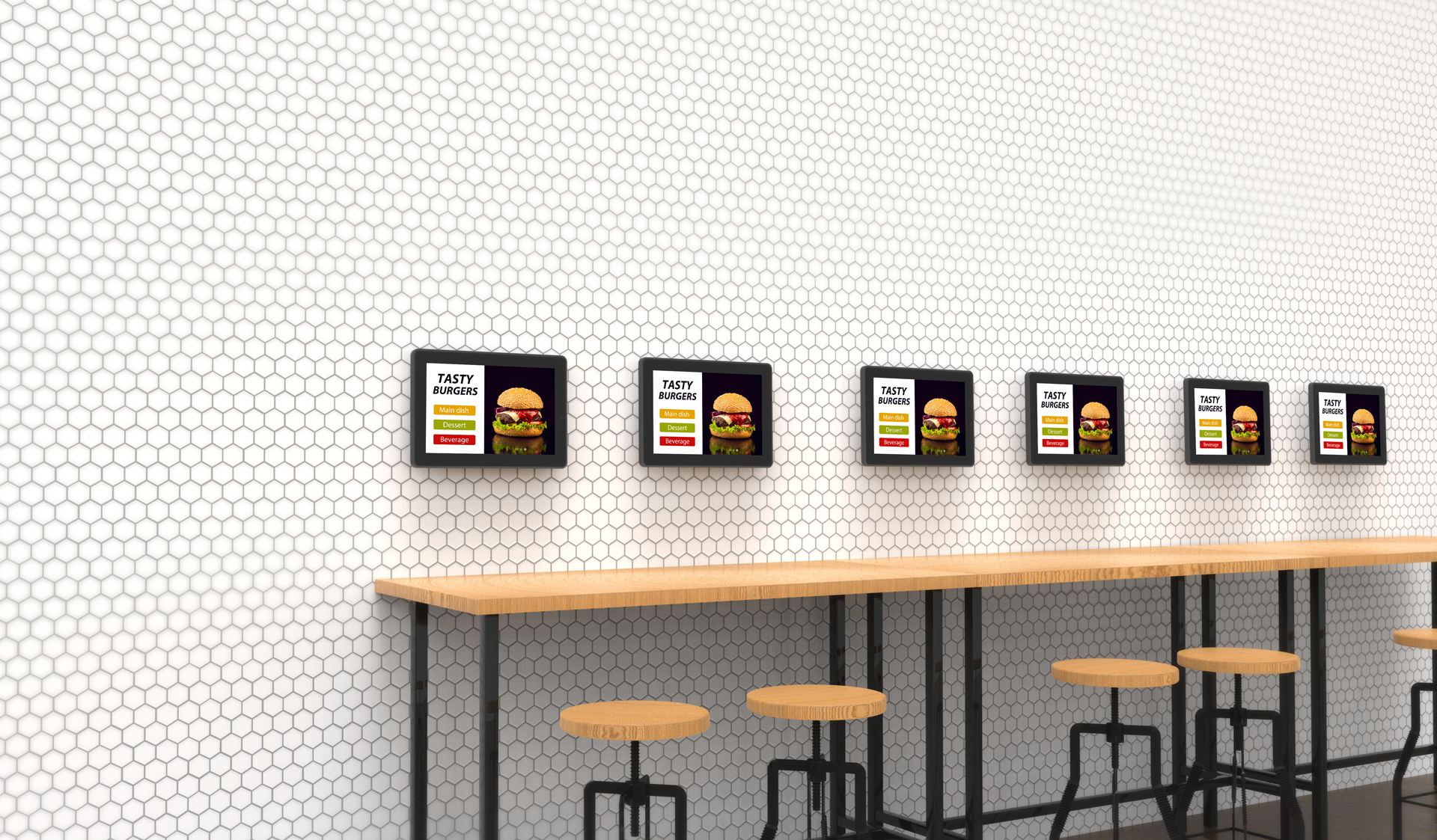

Restaurant Self-Ordering

PP-1120W wallmount solution for restaurants allows customers to take their time ordering to improve the customer experience and reduces manpower.

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-2.png
03

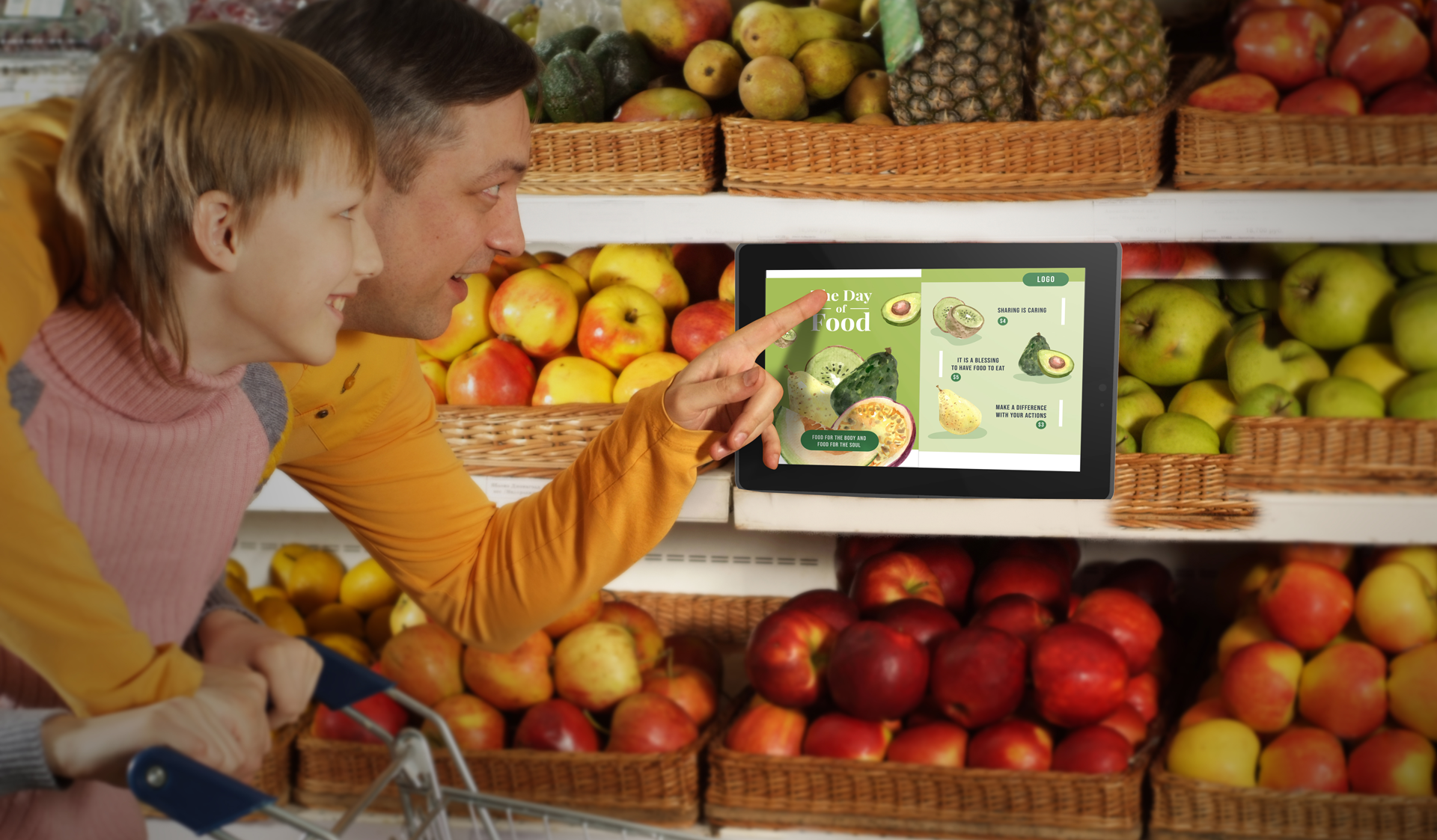

Instant product checking

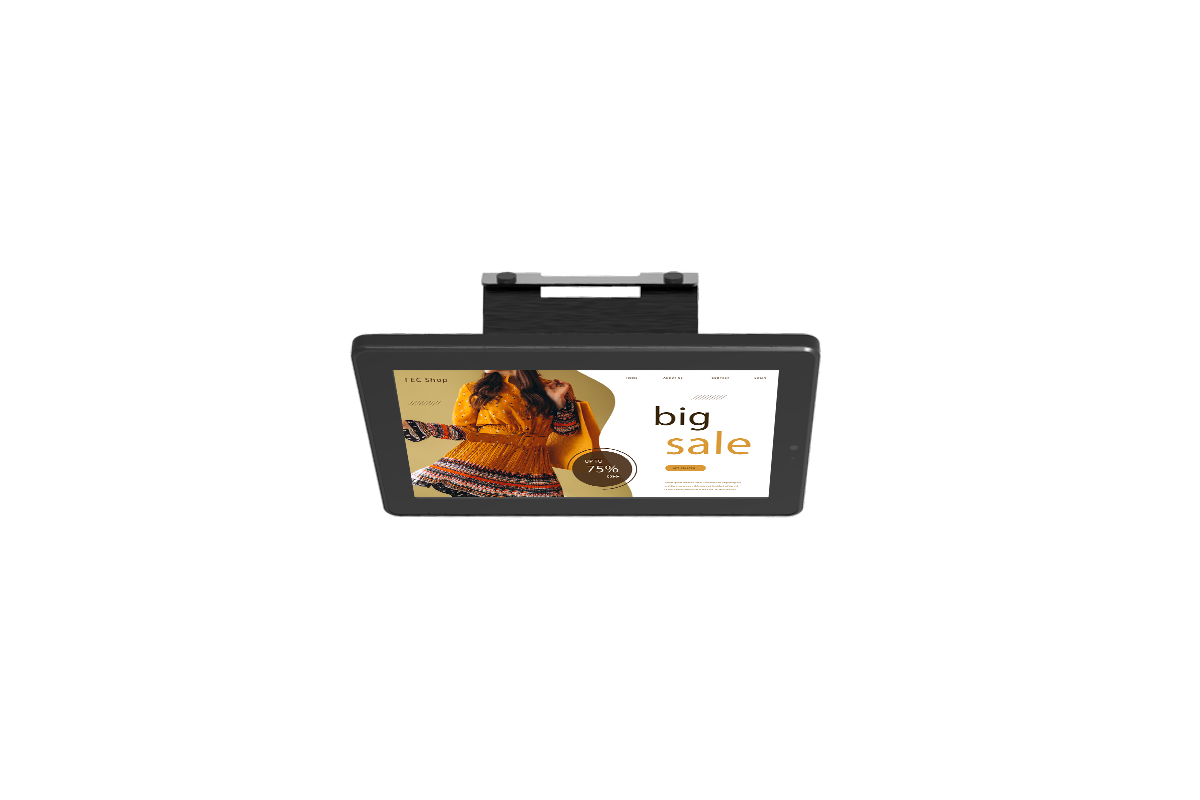

Shelf-mounted PP-1120 enables product detail and realtime prince updates.

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-5.png
04

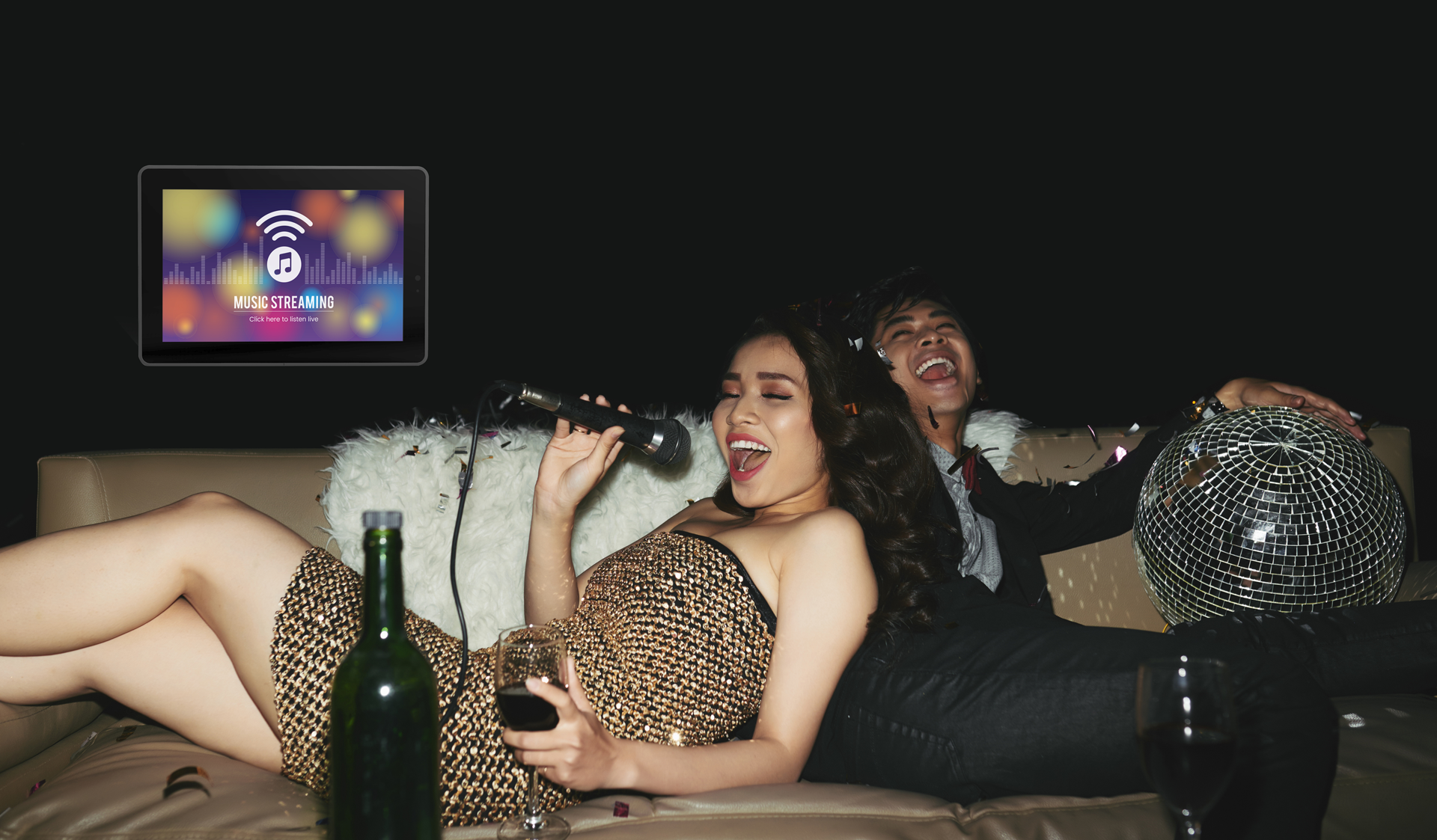

Entertainment

PP-1120W with 10 inch screen is prefect to use as additional screen for servicing

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-6.png
05

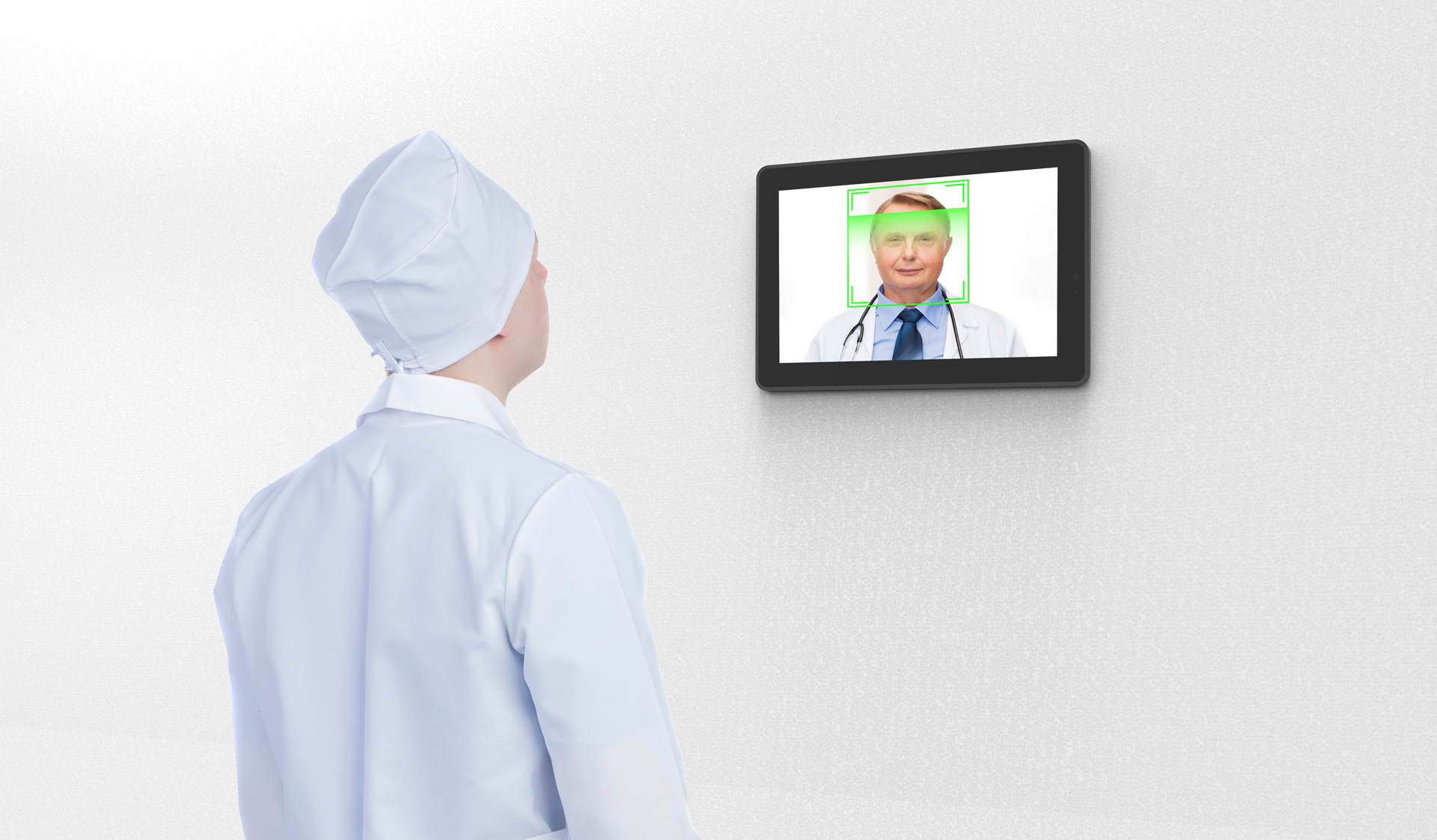

2M camera

Optional 2M integrated camera enables a wide range of capabilities such as video terminal, auto-login and more.

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-3.png
06

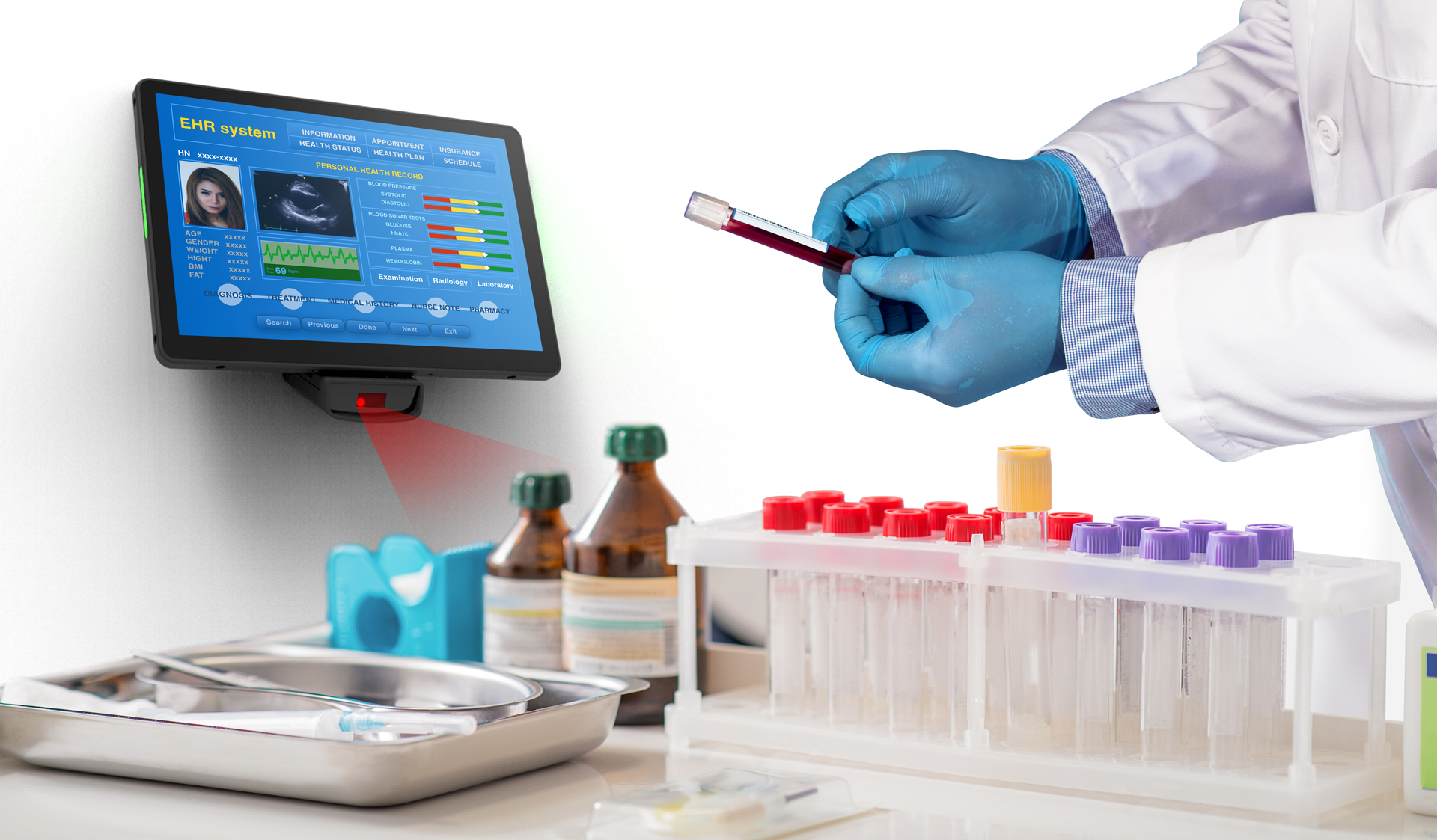

2d Scanner

Adding a scanner transforms it into a price checker or tag scanner. (Project Base)

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-4.png

規格

處理器
處理器
  • RK-3288 Quad-core Cortex-A17 up to 1.6GHz
記憶體
記憶體
  • 2GB DDR3 On Board
儲存裝置
儲存裝置
  • 16GB Built-in eMMC
無線裝置
無線裝置
  • WIFI 802.11 ac & BT 4.2 (Option)
喇叭
喇叭
  • 2 x 2W Internal Speaker
顯示器
顯示器
  • 10.1” TFT, 1280 x 800
觸控
觸控
  • True-flat PCAP
亮度
亮度
  • 300 nits
平均故障間隔時間
平均故障間隔時間
  • 25K hours
像機
像機
  • 2M Front Camera (Optional)
電源供應
電源供應
  • 12V / 20W or 12V / 50W External Adapter
作業系統
作業系統
  • Android 8.1 Oreo
壁掛
壁掛
  • VESA 100 X 100 mm
認證
認證
  • FCC / CE Class B
外觀
外觀
  • Black
溫度
溫度
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
尺寸 (寬 x 高 x 深)
尺寸 (寬 x 高 x 深)
  • Product: 264 x 182x 24.6 mm
  • With Stand: 264 x 182 x 163 mm (60 degree)
  • With Stand: 264 x 182 x 105 mm (30 degree)
重量
重量
  • Net: 2 Kg
  • Gross: 2.48 Kg
連接埠
連接埠
  • 3 x USB 2.0 Type A , 1 x USB 3.0 Type A (OTG)
  • 1 x RJ45 LAN
  • 1 x DC-In
  • 1 x Micro SD (Max: 64GB)
  • 1 x Mic In (Optional)
