XC-569
產品介紹
01

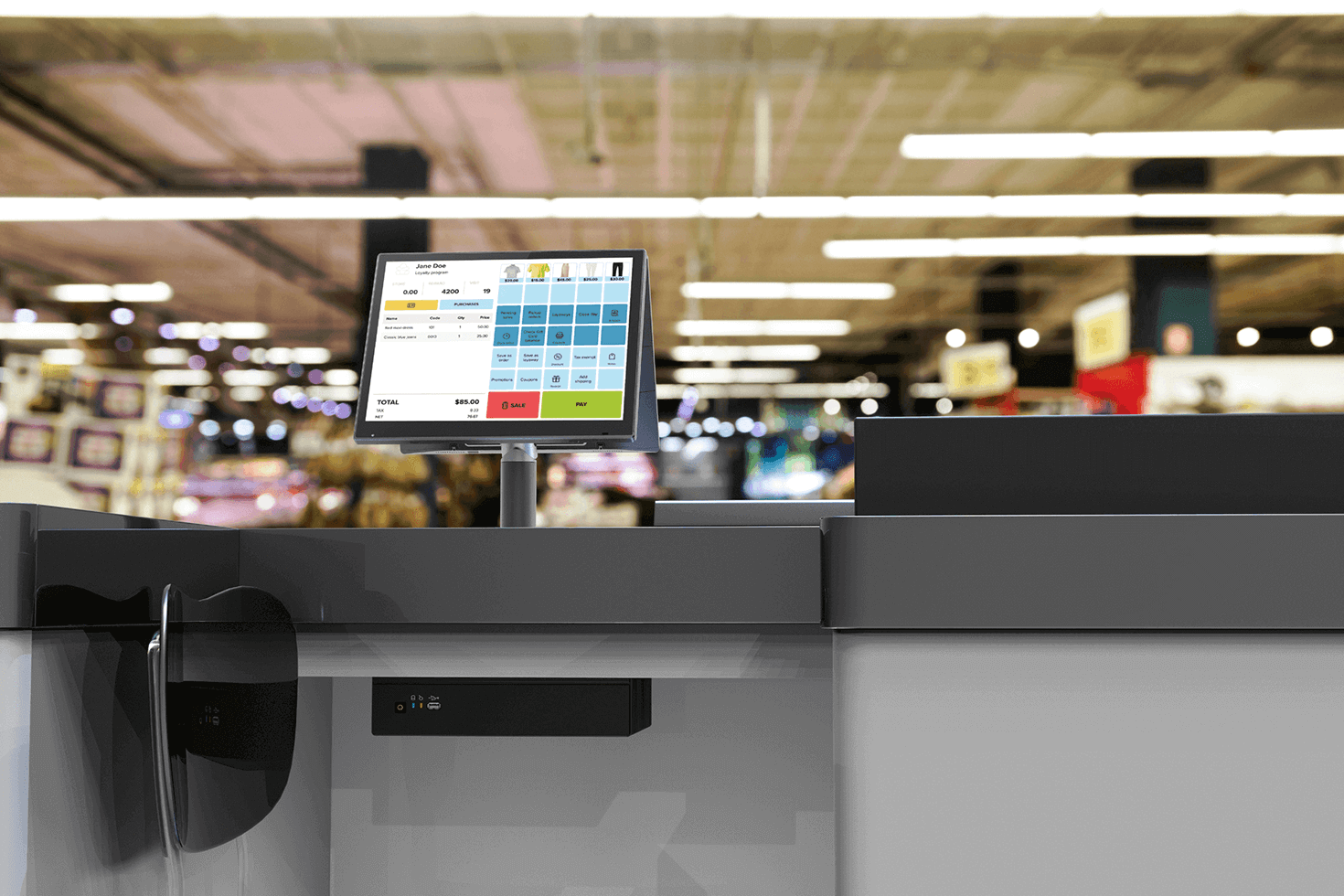

Small Form Factor Enables
Flexible Installation Options
Xcomp can be placed vertically or horizontally in small spaces on or under the counter to optimize counter space, serviceability and cable management.
02
Small But Powerful
Small 4.5L (295mmW/210mmD/73mmH) size enables installation in small spaces, yet is powerful enough to take on big server jobs.
03

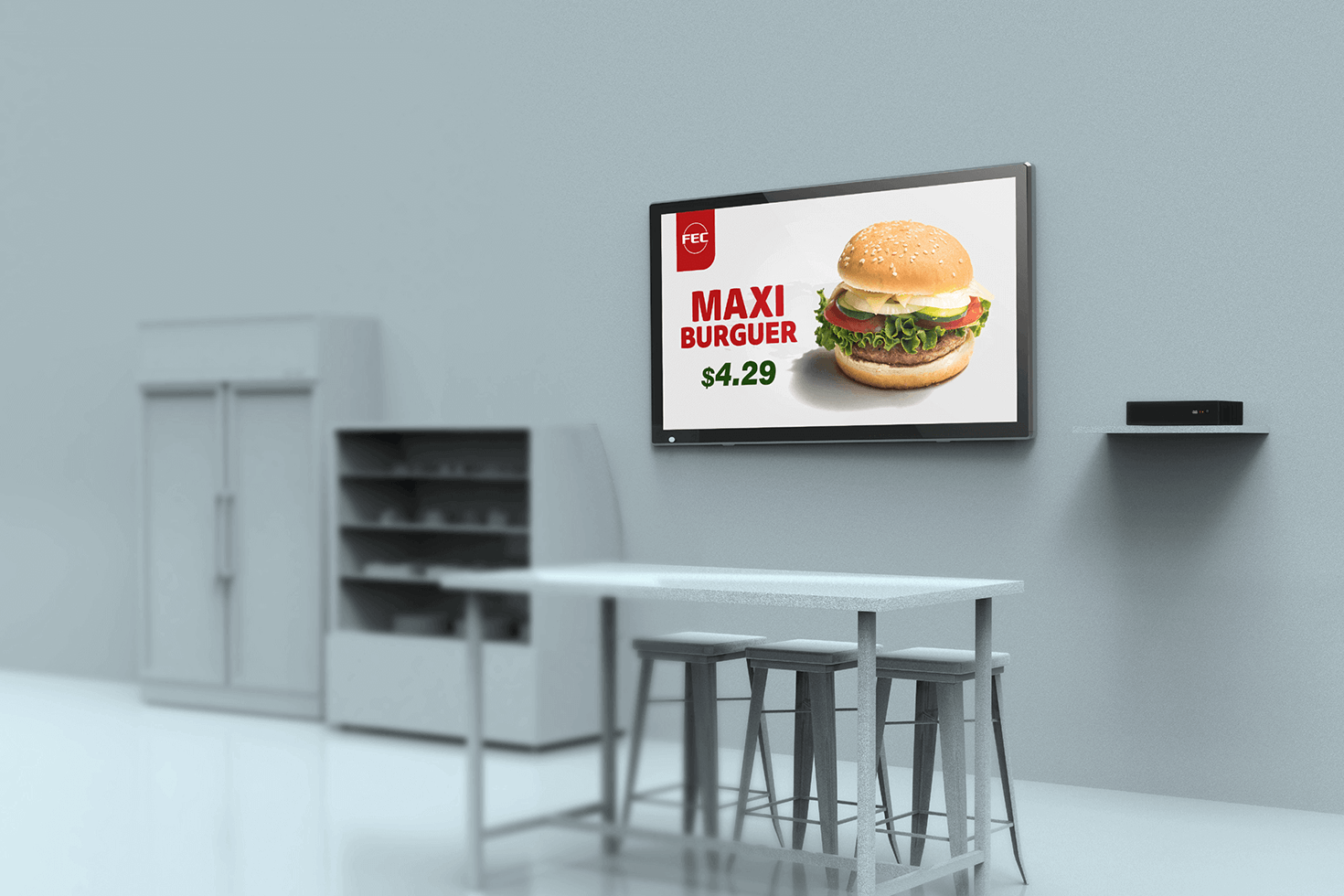

Push Media player
04
Back-Office Server
Xcomp is a great solution when in-store server capacity is required to expand edge computing.
05

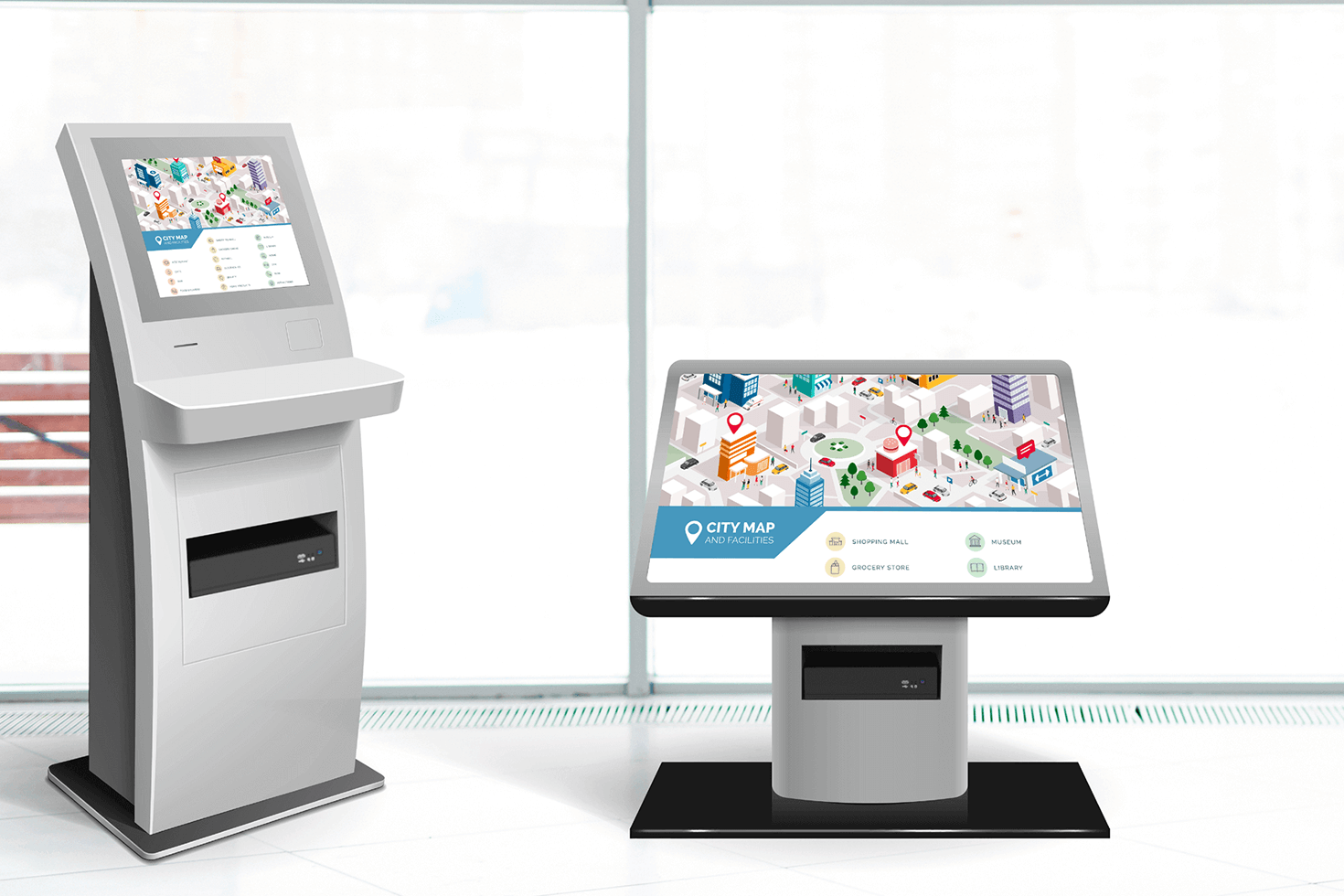

KIOSK Engine
Xcomp can support media-intensive and other with high-demand kiosk applications.
06

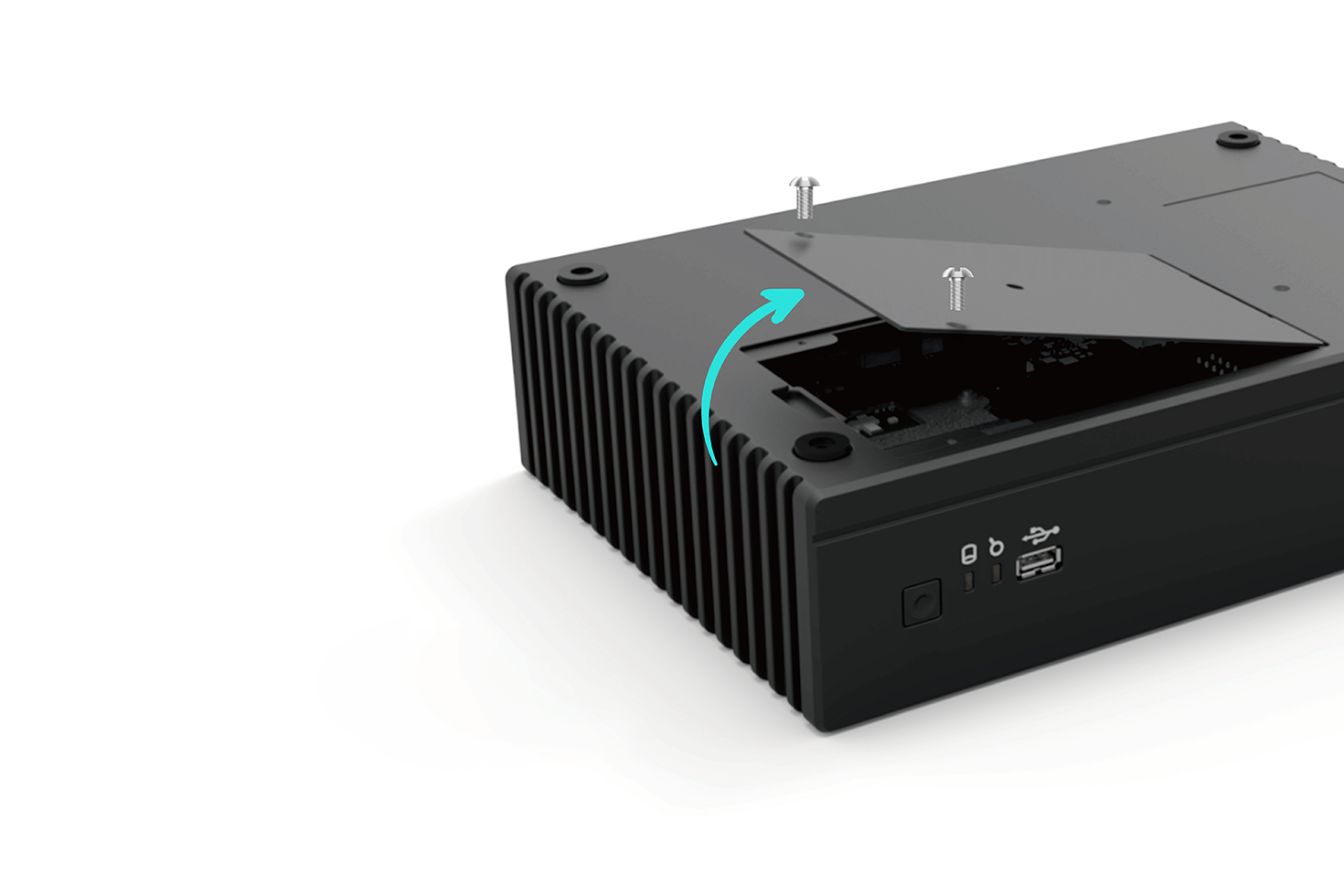

Highly Serviceable
Easy access to memory and storage minimizes
mean-time-to-repair for storage corruptions
and other service issues.
07

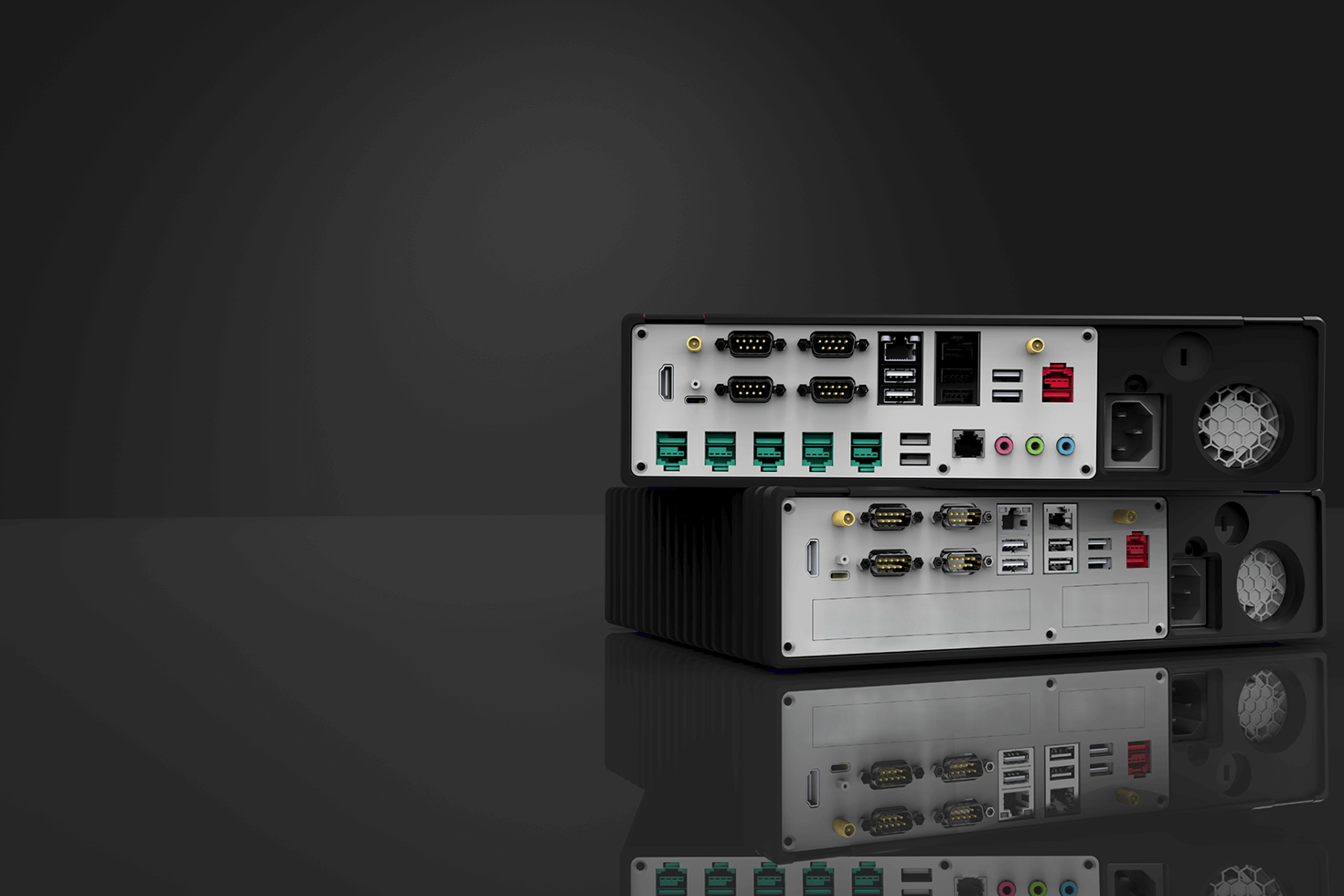

Small Form Factor,
But Big I/O Support
Modular I/O enables from simple IO support to the most demanding use cases, Xcomp has you covered.
規格
處理器
- Intel® Celeron® G4900T 2M Cache, 2.90 GHz
- Intel® Celeron® G5400T 4M Cache, 3.10 GHz
- Intel® Core™ i3 9100TE 6M Cache, up to 3.20 GHz
- Intel® Core™ i5 9500T 9M Cache, up to 3.60 GHz with vPro™
記憶體
- 4GB Standard, Max 32GB (2 x So-DIMM DDR4)
儲存裝置
- 2 x M.2 M Key Storage
無線裝置
- WIFI 802.11 ac & BT 4.2 (Optional)
電源供應
- 250W PSU, up to 85% Efficiency
作業系統
- Windows 10 Pro
- Windows 10 IoT Enterprise
- Windows Server 2016
- Windows Server 2019
壁掛
- VESA 100 x 100 mm
認證
- FCC / CE Class B
外觀
- Black
溫度
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
尺寸 (寬 x 高 x 深)
- 210 x 295 x 73 mm
重量
- Net: 4.15 Kg
- Gross: 5.2 Kg
連接埠
- 1 x RJ45 (COM1) RS232
- 4 x DB9 (COM2, COM3, COM4, COM5) RS232
- 6 x USB Type A (4 x USB 2.0, 2 x USB 3.1)
- 1 x PUSB 24V
- 1 x USB DP
- 1 x Video
- 1 x RJ45 GigaLAN
- Front I/O:
1 x USB 2.0 Type A - Internal I/O:
1 x USB 2.0 Type A
選擇搭配
- PUSB Board:
5 x PUSB 12V
2 x USB 2.0 Type A - Audio Board:
1 x RJ11 (12V/24V) Supports Two Cash Drawers
1 x Line-out
1 x Line-in
1 x Mic-in
