XP-4685
產品介紹
01

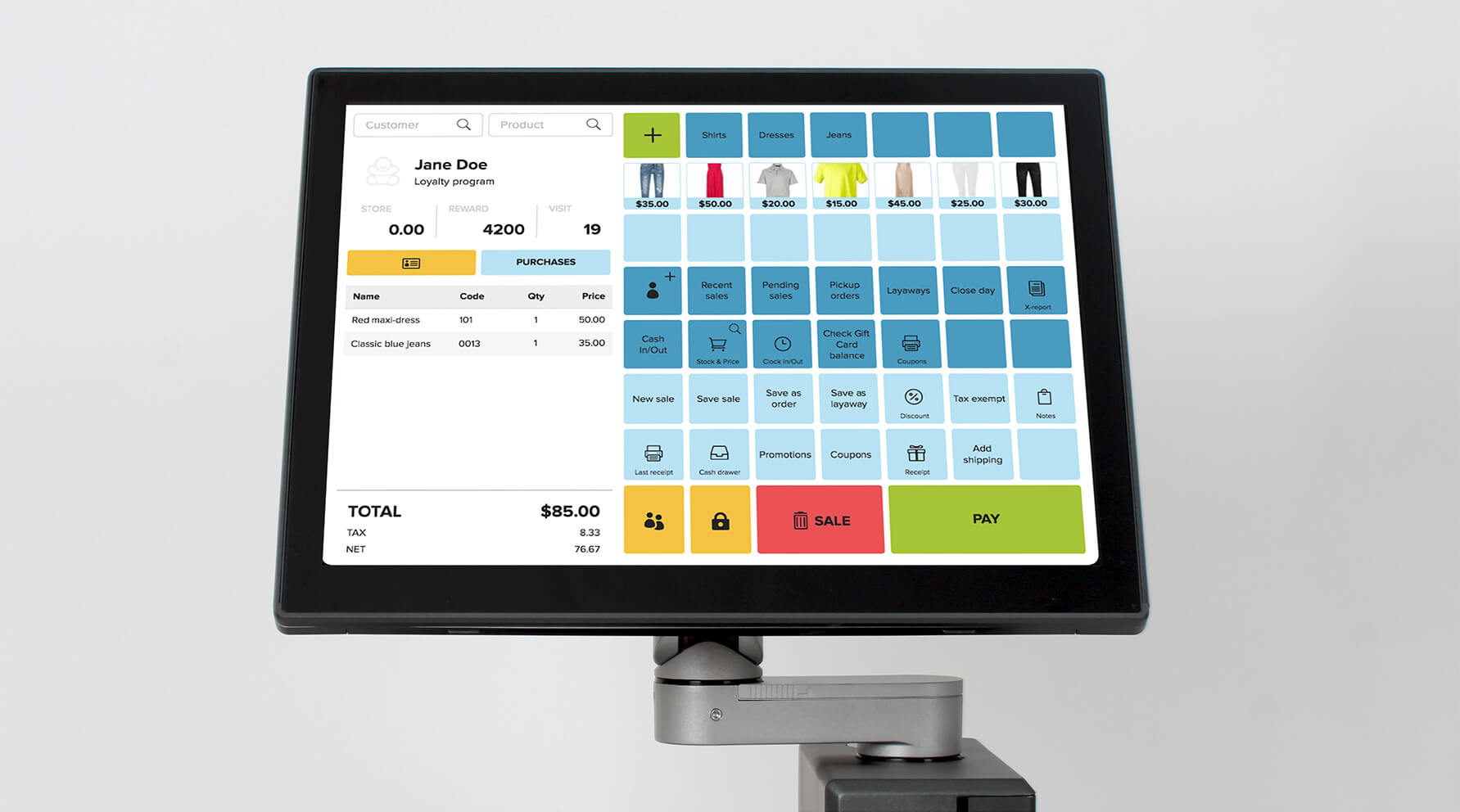

整合式

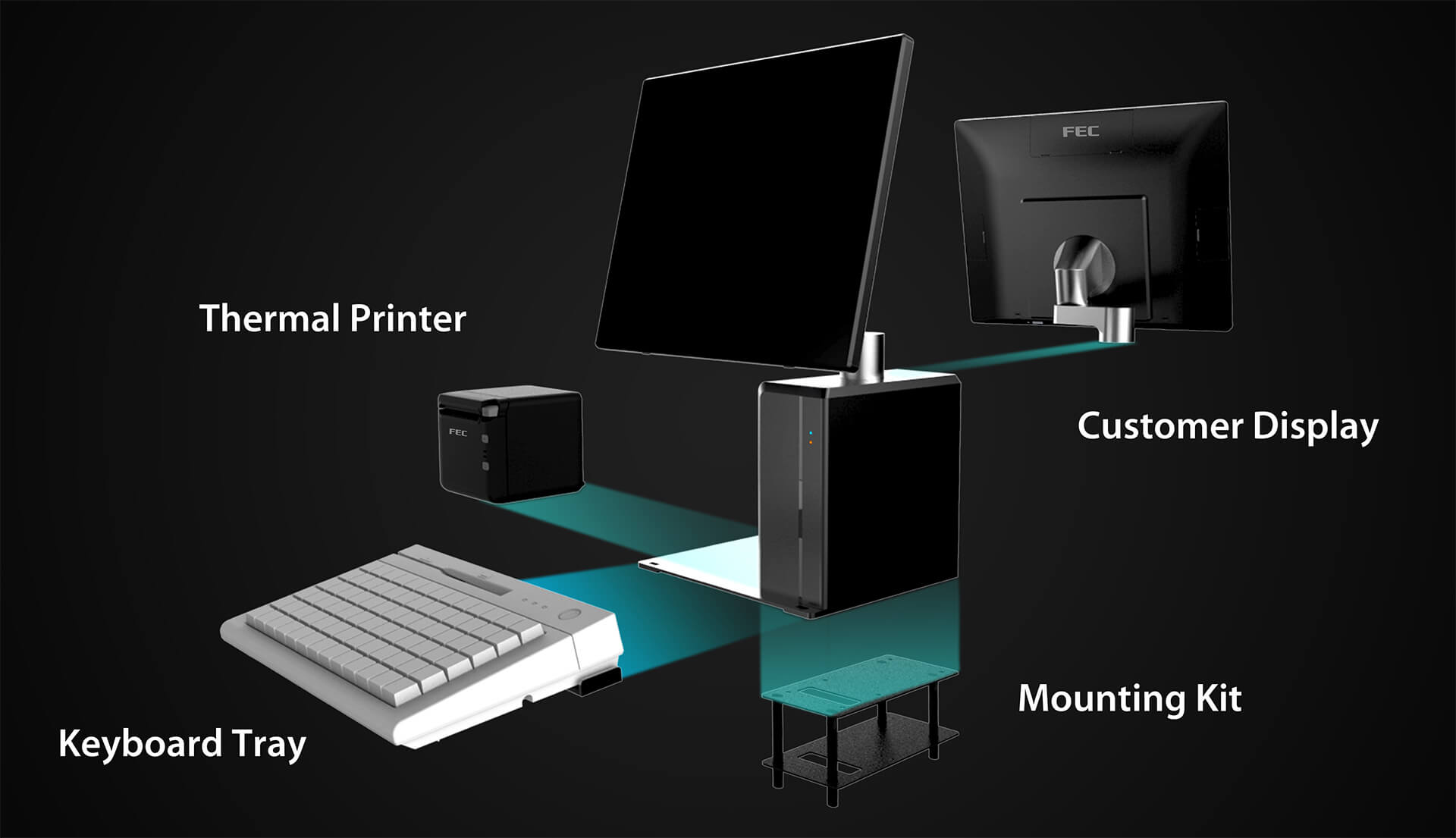

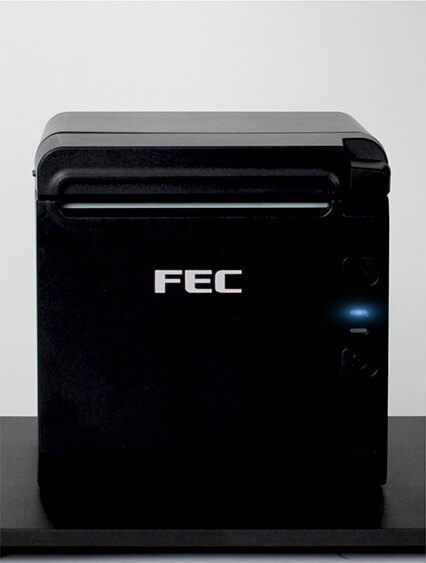

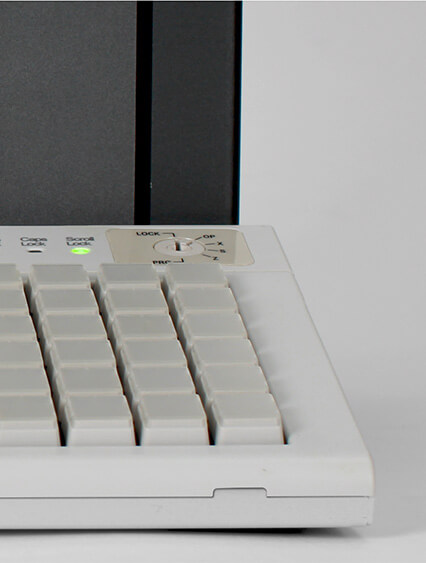

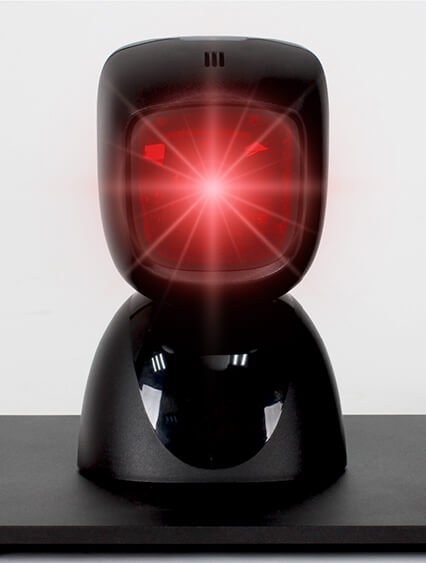

XP-4000整合式POS機可添加周邊擴充，如印表機、鍵盤、讀卡機或掃描器。
02

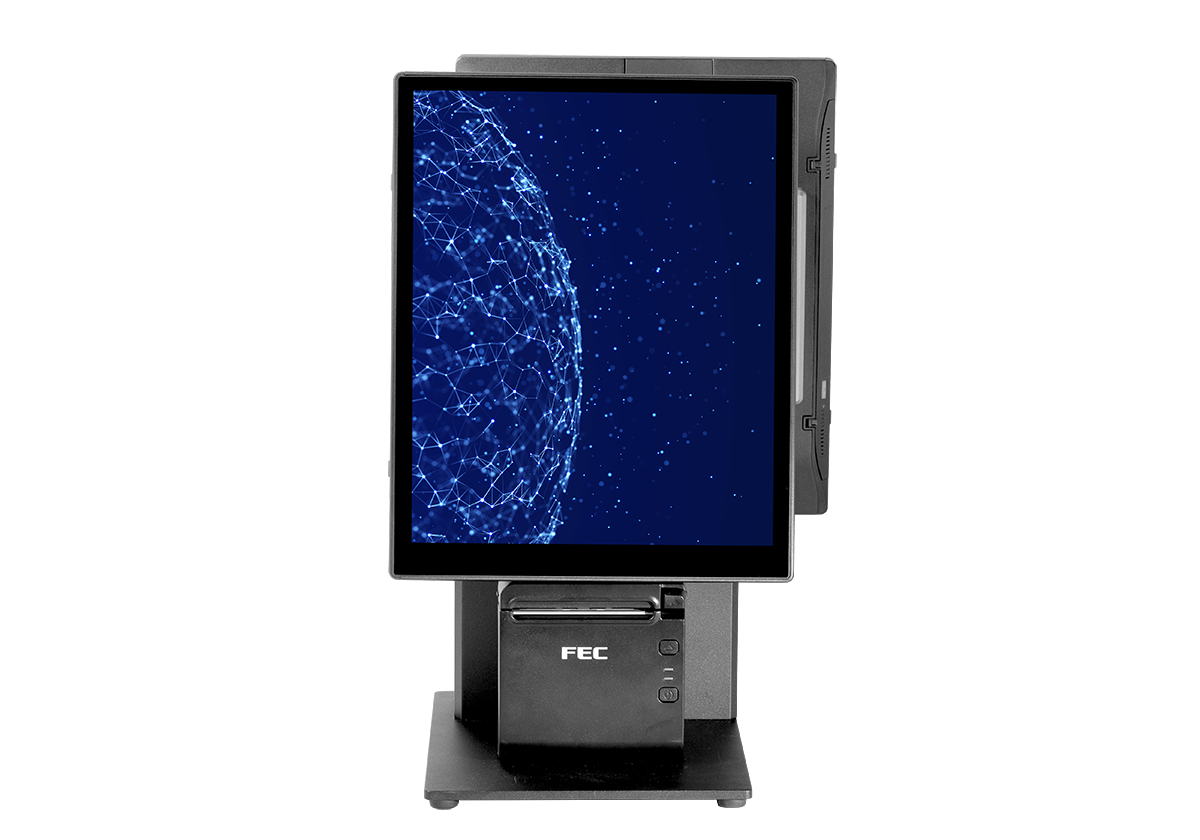

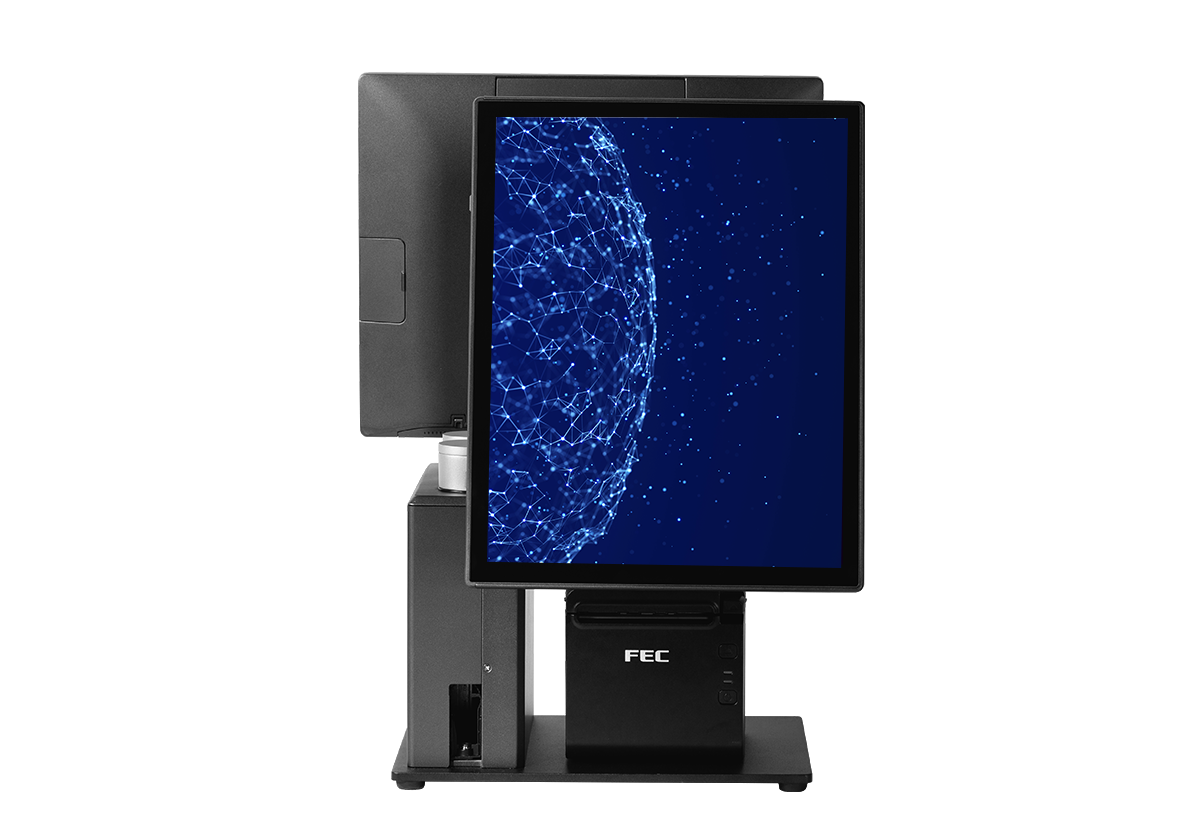

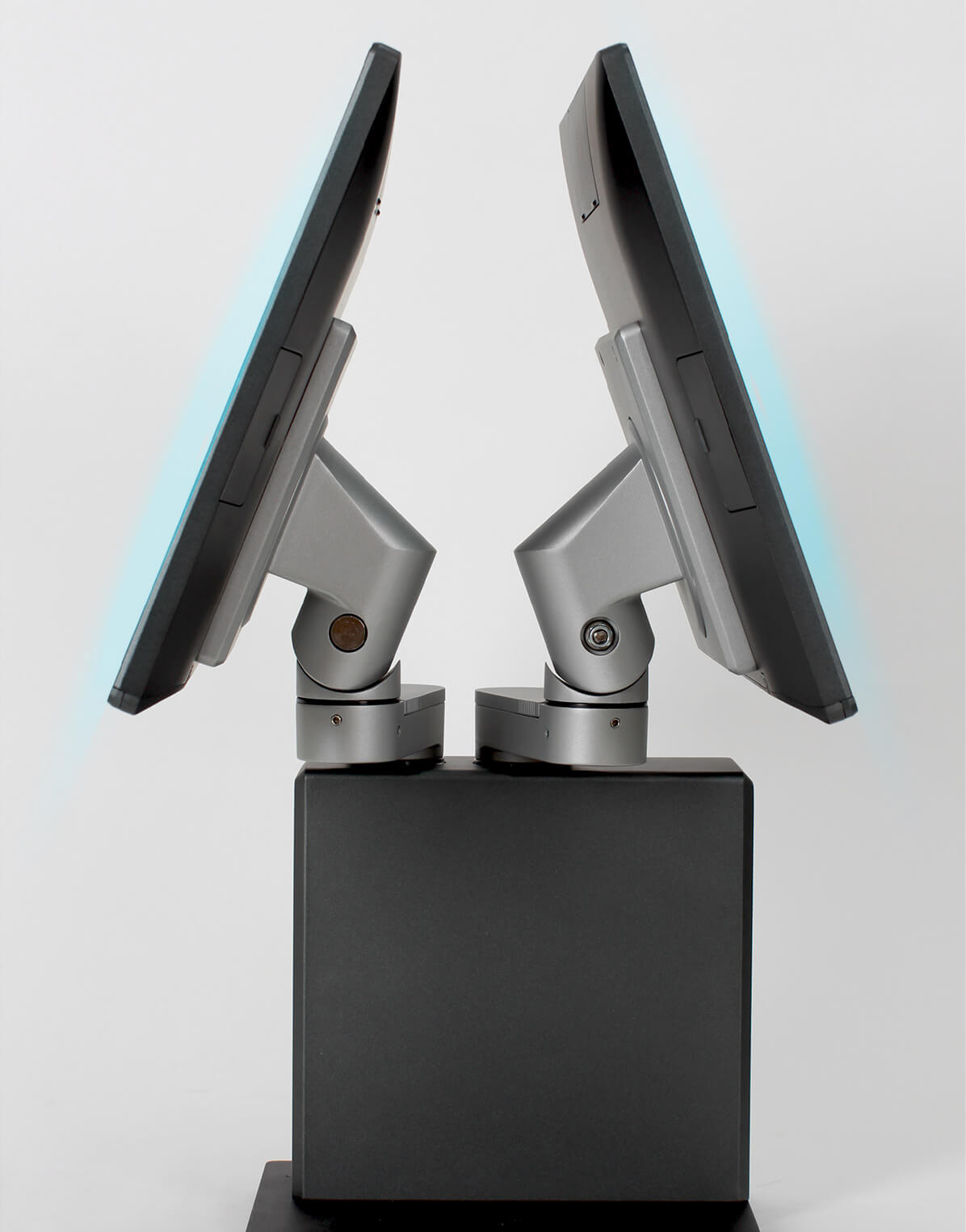

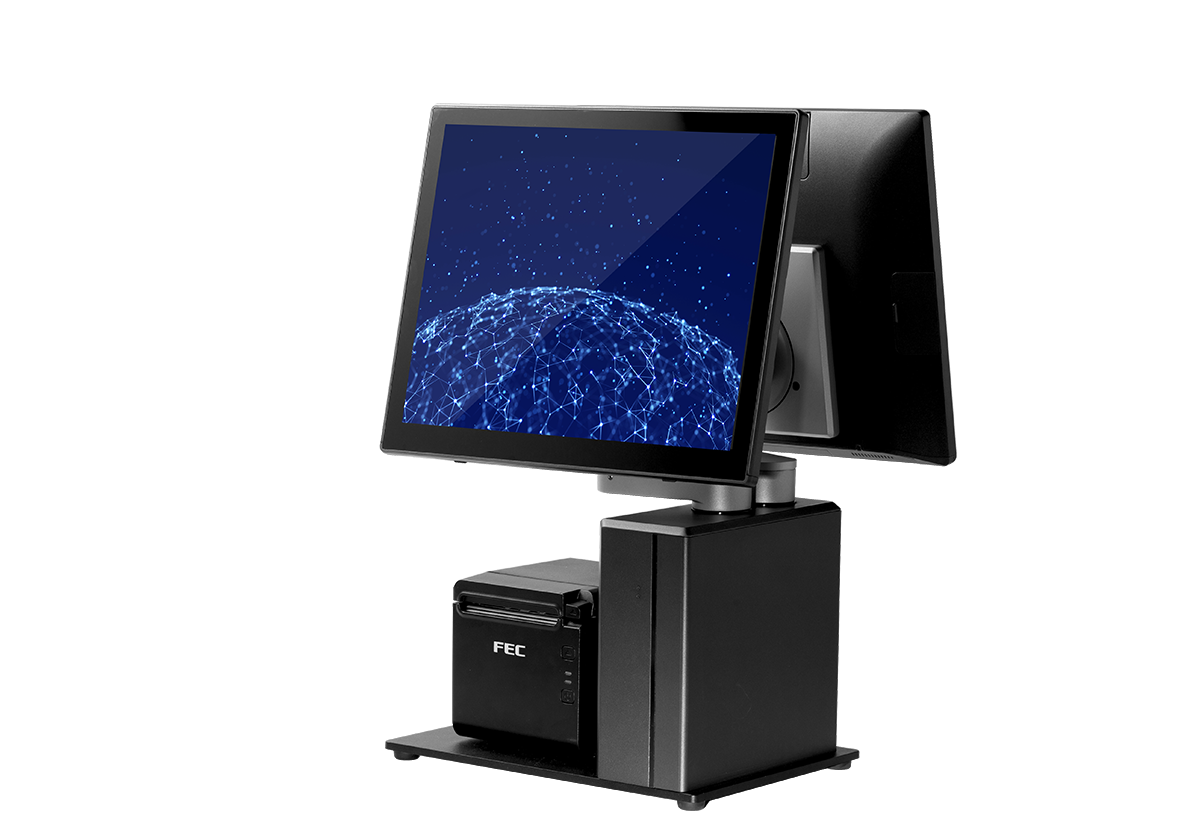

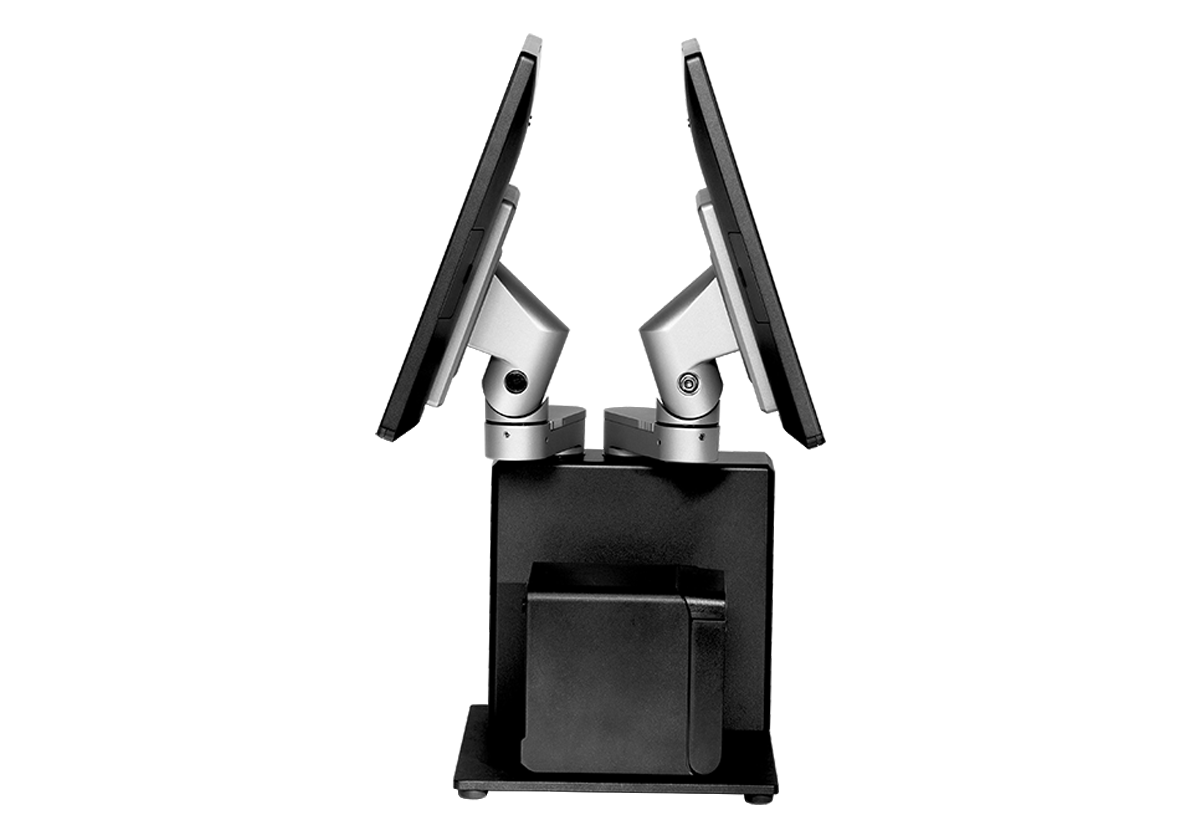

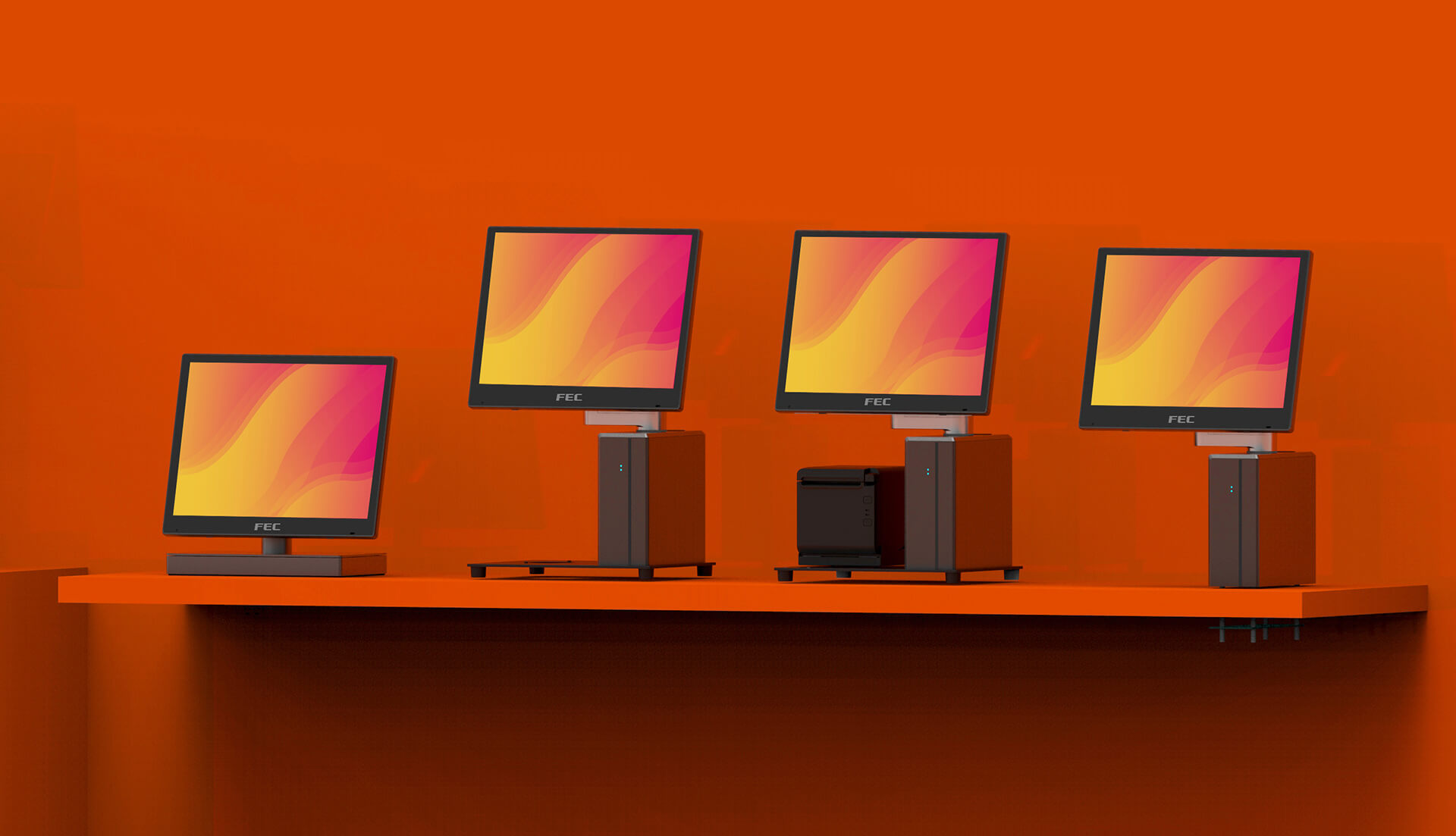

多樣化的組合型態
03

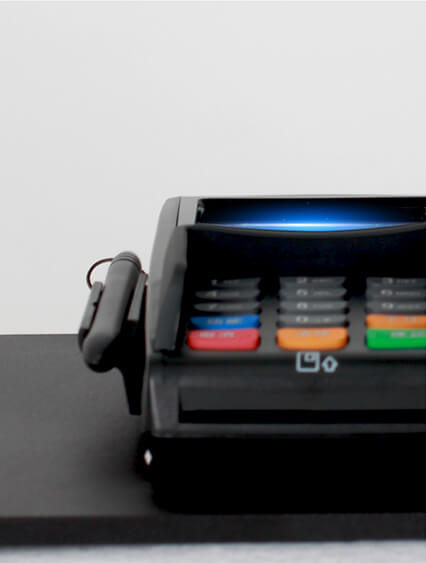

擴充
規格
處理器
- Intel® Celeron® 3965U 2M Cache, 2.20 GHz
- Intel Core™ i3 7100U 3M Cache, 2.40 GHz
- Intel Core™ i5 7300U 3M Cache, up to 3.50 GHz
記憶體
- 4GB Standard, Max 32GB (2 x So-DIMM DDR4)
儲存裝置
- 2 x M.2 M Key (SATA III or PCIe)
- *(Celeron® Supports Only One PCIe Storage Device )
無線裝置
- 2 x M.2 E Key 802.11ac + BT (Optional)
喇叭
- 2 x 2W Internal Speaker
顯示器
- 15” TFT, 1024 x 768
觸控
- True-Flat PCAP
亮度
- 400 nits
平均故障間隔時間
- 50K Hours
像機
- 2MP Front Camera (Optional)
電源供應
- 20V / 90W or 20V / 130W External Adapter
作業系統
- Windows 10 Pro
- Windows 10 IoT Enterprise
壁掛
- VESA 100 x 100 mm
認證
- FCC / CE Class B
外觀
- Aluminum Die-Casting + Plastic
- Galaxy Grey
溫度
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
尺寸 (寬 x 高 x 深)
- Product: 342.5 x 510 x 208 mm
重量
- Net: 11.4 Kg
- Gross: 13.5 Kg
連接埠
- 1 x USB 3.0 Type A
- 1 x USB 2.0 Type A (Reserved for Add-On)
- 1 x USB DP (Reserved for 2nd Display)
- 1 x FEC DP ( Reserved for Customer Display or 2nd Display)
選擇搭配
- 2nd I/O Type C: 1 x PUSB 12V, 2 x RJ45 (COM6, COM7) RS232
- 2nd I/O Type G: 3 x PUSB 12V
底座連接埠
- 3 x RJ45 (COM3, COM4, COM5) RS232
- 4 x USB 2.0 Type A
- 1 x USB DP (2nd Display)
- 1 x RJ11 (12V / 24V)
- 1 x RJ45 LAN
- 1 x 20V DC-in
- 1 x 24V Powered USB
- 1 x Audio Line Out (Optional)
- 1 x 12V DC-out (Optional)
