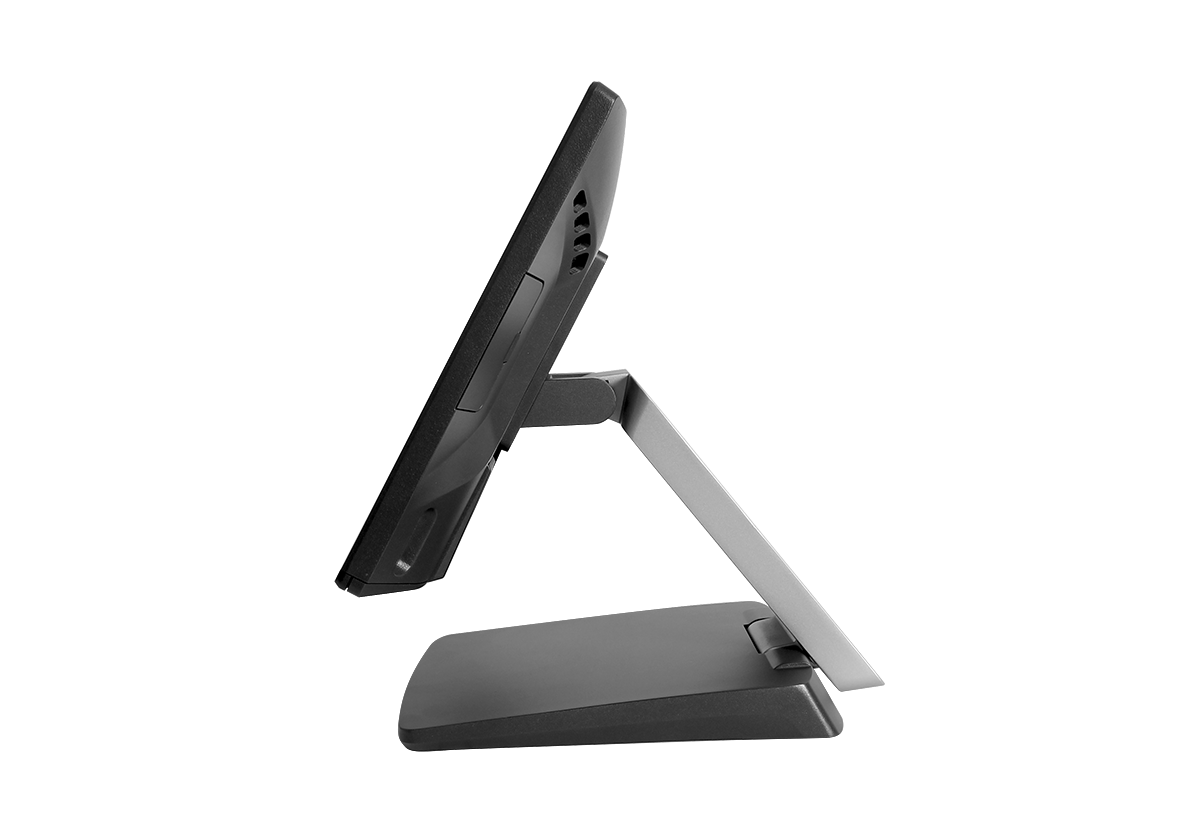

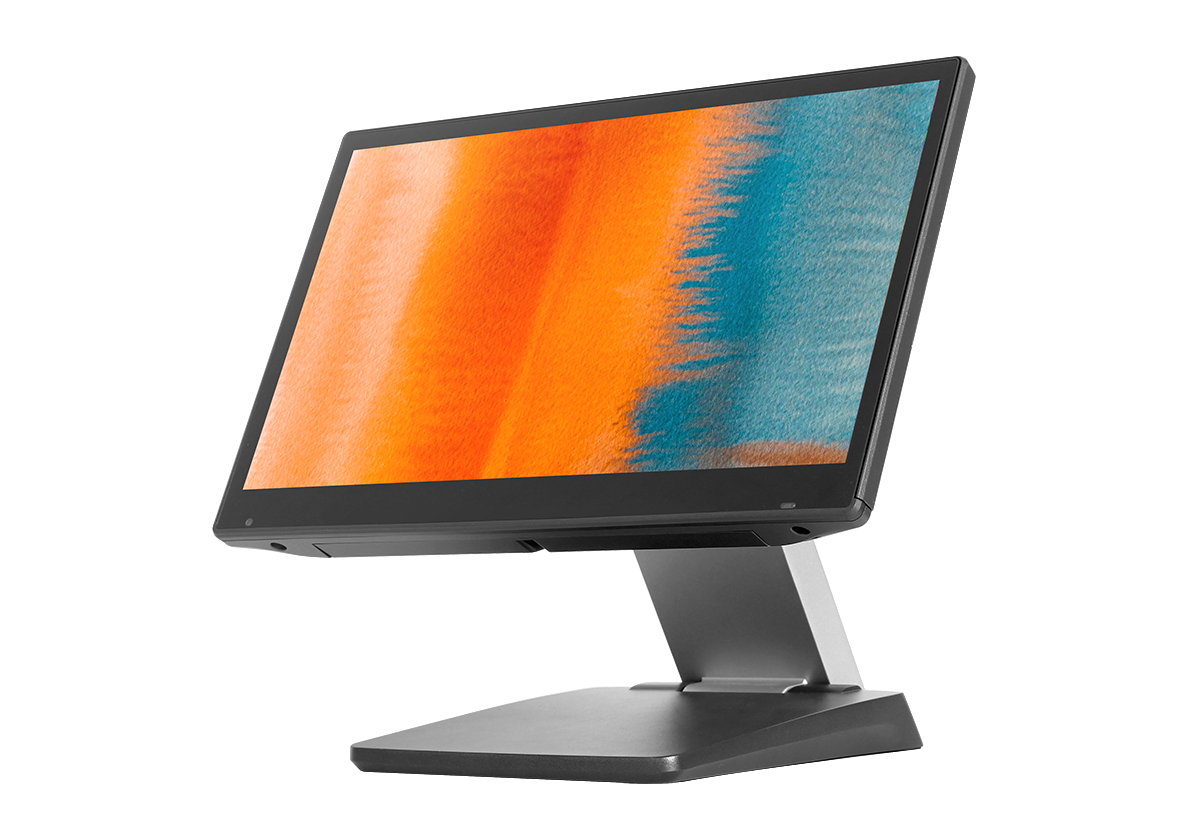

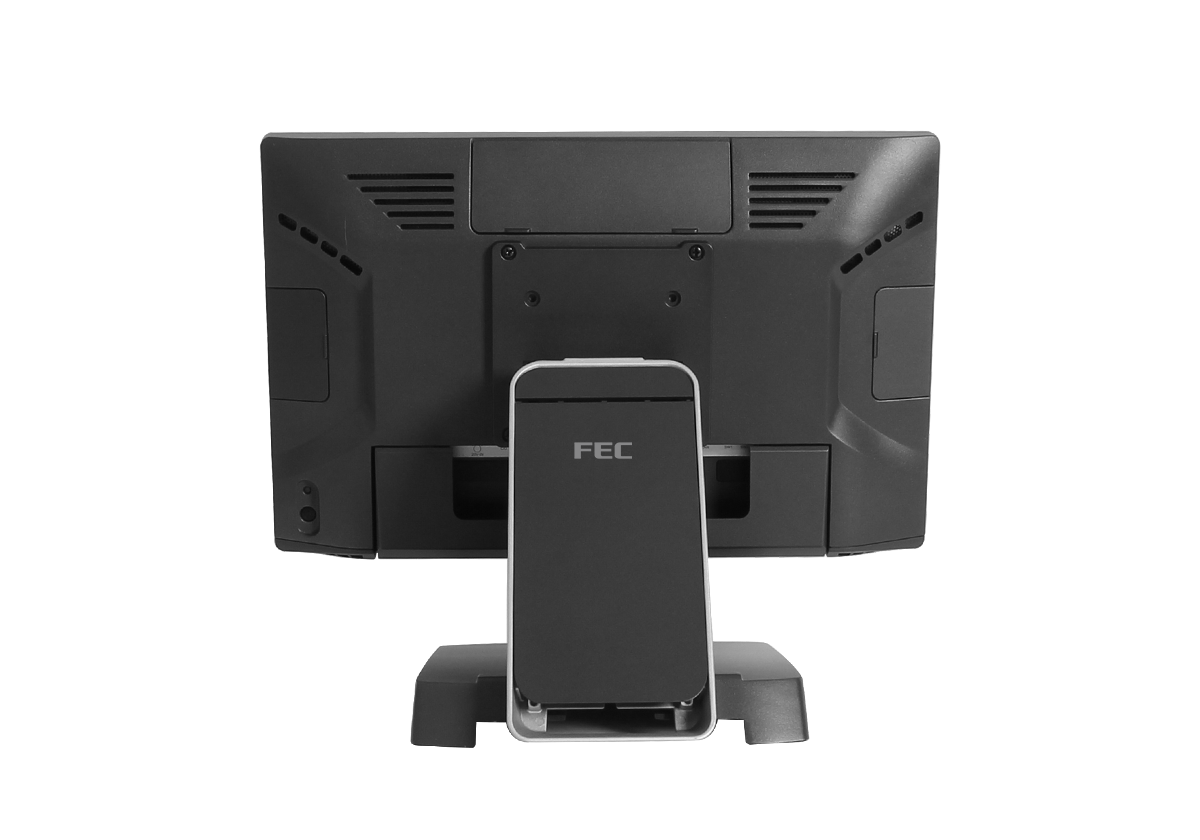

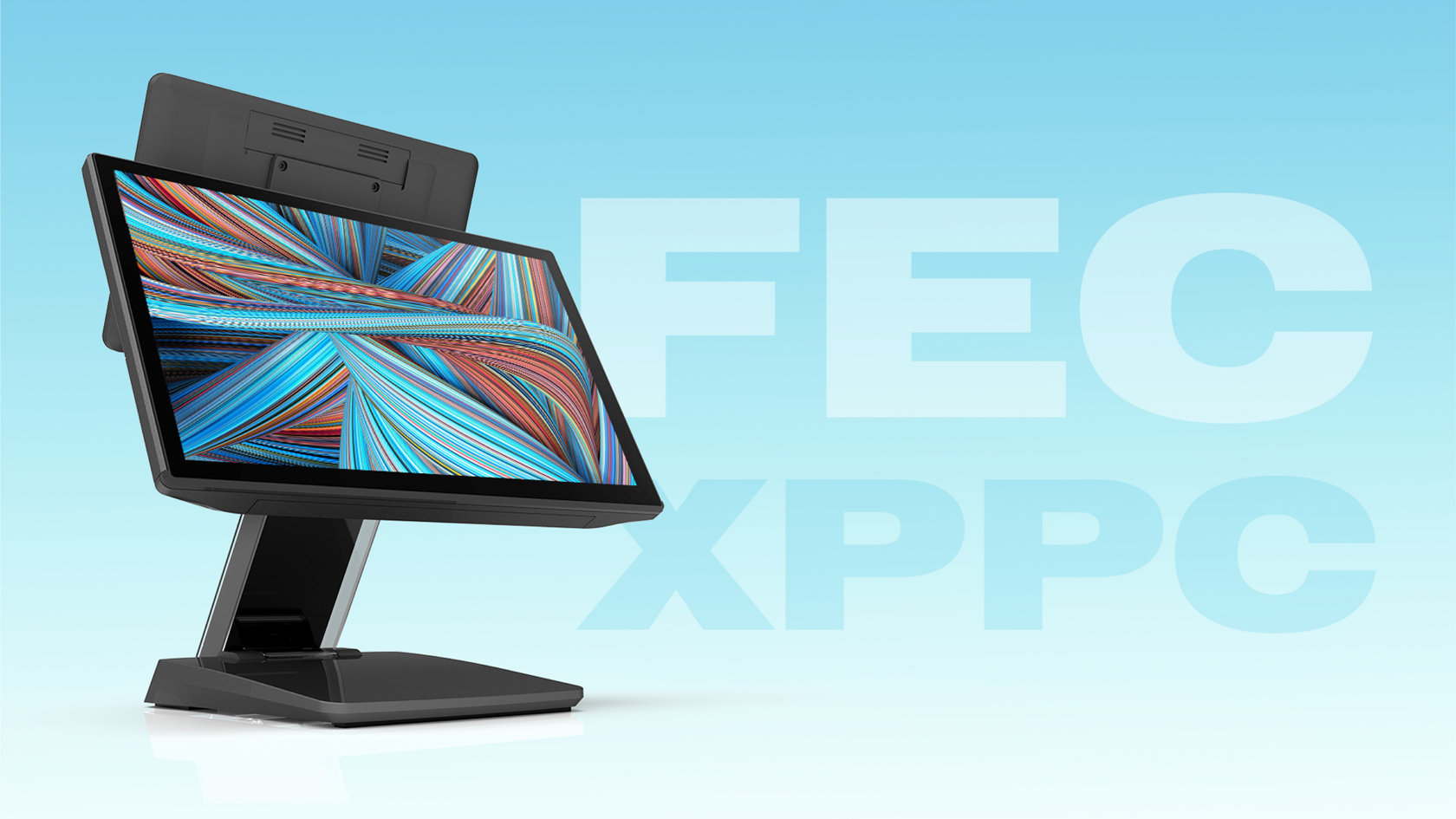

PP-9715W
產品介紹
01

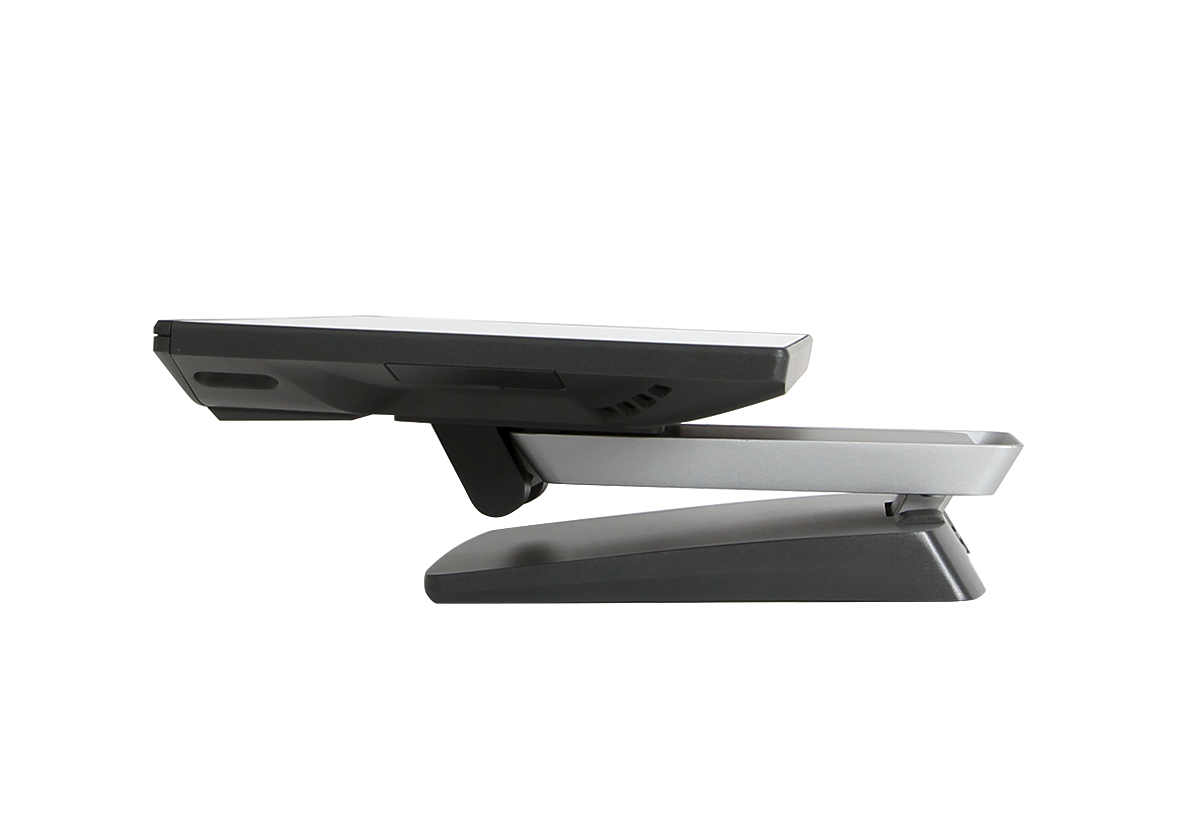

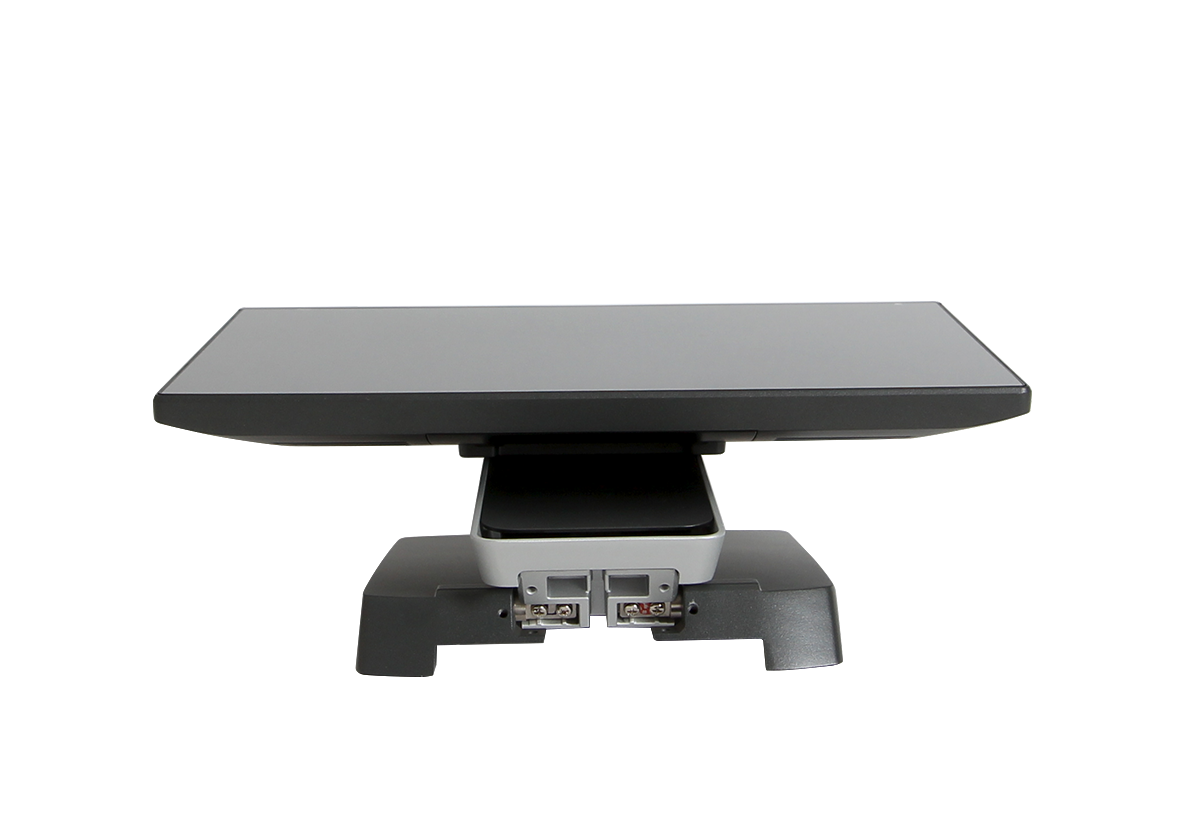

ECO-FRIENDLY
Reduce the size and package to save the environment and for easier transportation
02

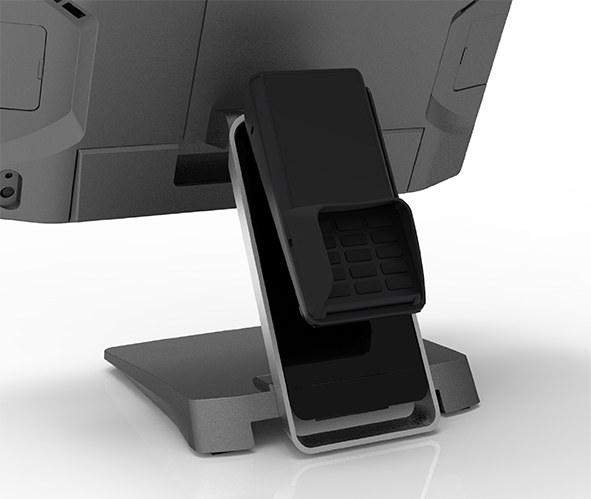

WITH PAYMENT EFT / SCANNER
Two ways for add-on device settlement.

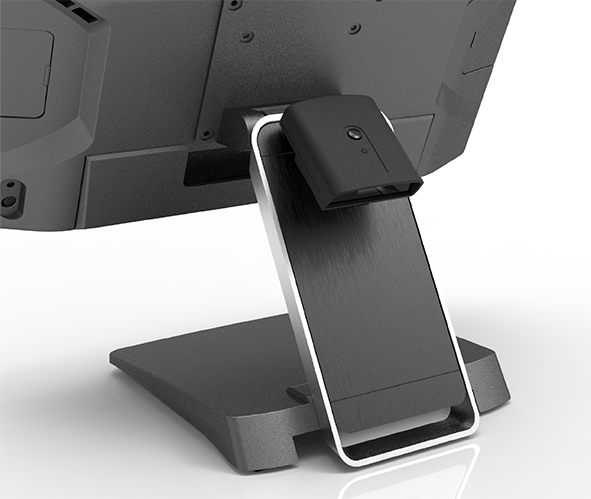

Arm type Barcode Scanner
Payment Device

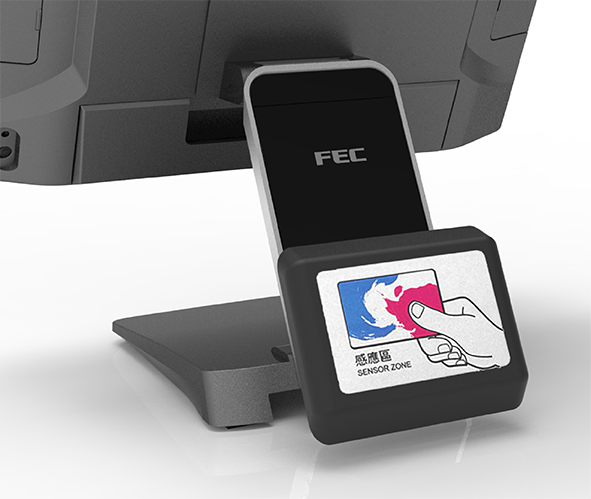

RFID Device
03
2nd Display
Arm / Pole Type for different countertop
04

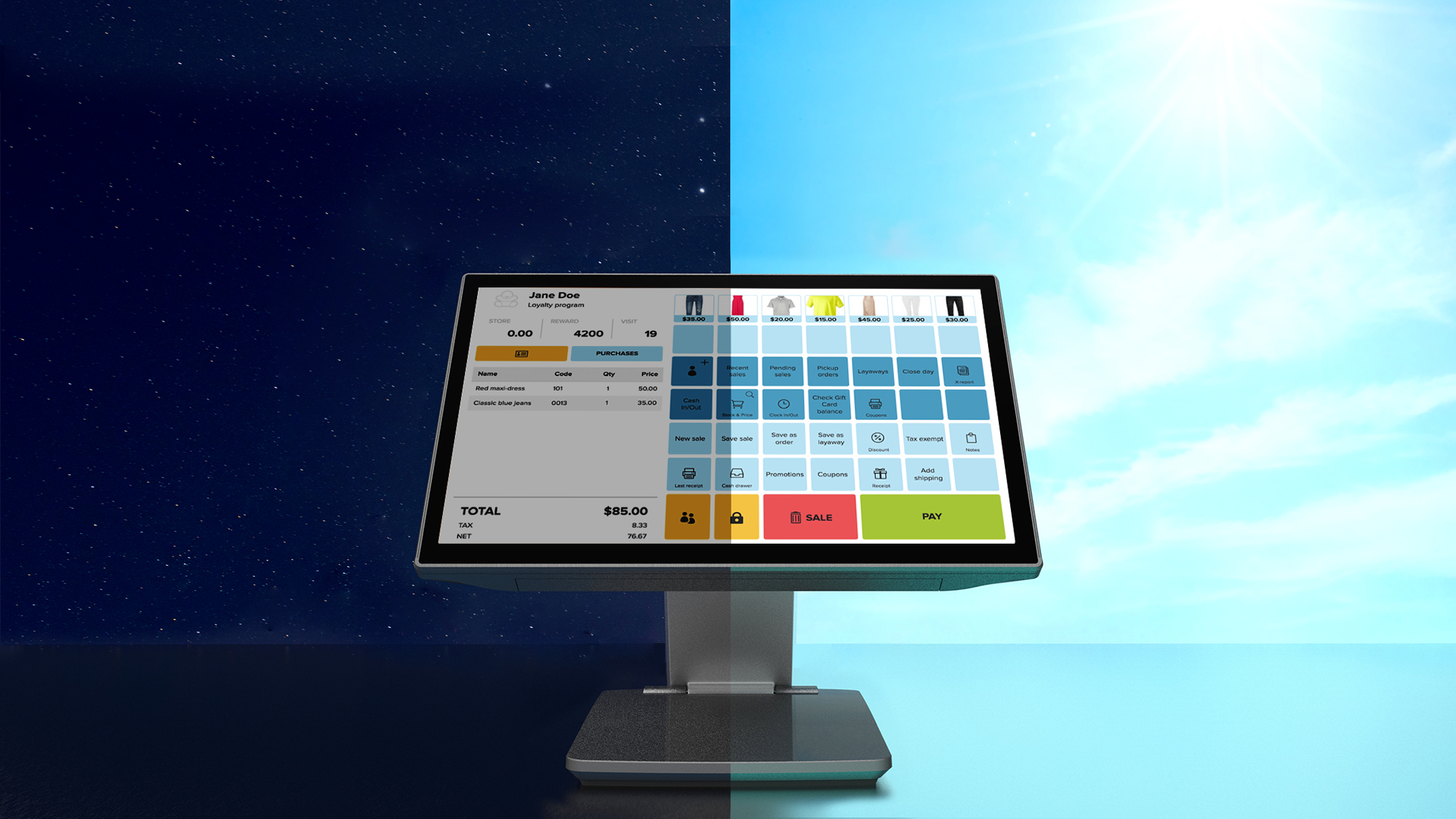

S E N S O R
Ambient light sensor allows system automatically adjust the brightness of the screen according to the environment.
05
COFFEE LAKE
High Performance CPU For Complex solution.
06
A LITTLE EXTRA

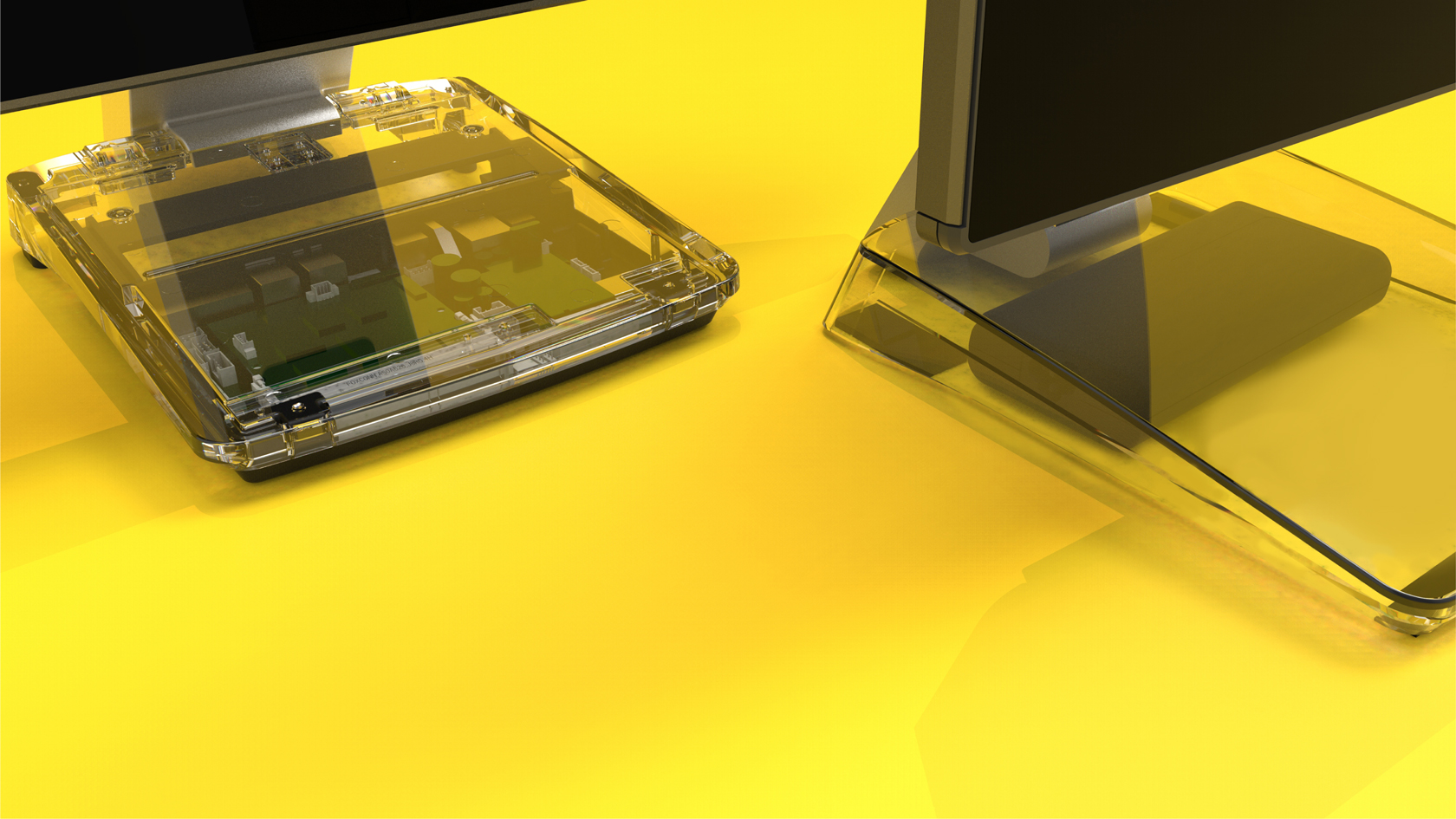

Hidden adapter in base or customized I/O (by project).
規格
處理器
- Intel® Celeron® G4900T 2M Cache, 2.90GHz
- Intel® Penntium® G5400T 4M Cache, 3.10GHz
- Intel Core™ i3 9100TE 6M, 3.20GHz
- Intel Core™ i5 9500TE 9M, 3.60GHz
記憶體
- 4GB Standard, Max 32GB (2 x So-DIMM DDR4)
儲存裝置
- 2 x M.2 M Key (SATA III or PCIe)
無線裝置
- 1 x M.2 E Key 802.11ac + BT (Optional)
喇叭
- 2 x 2W Internal Speaker
顯示器

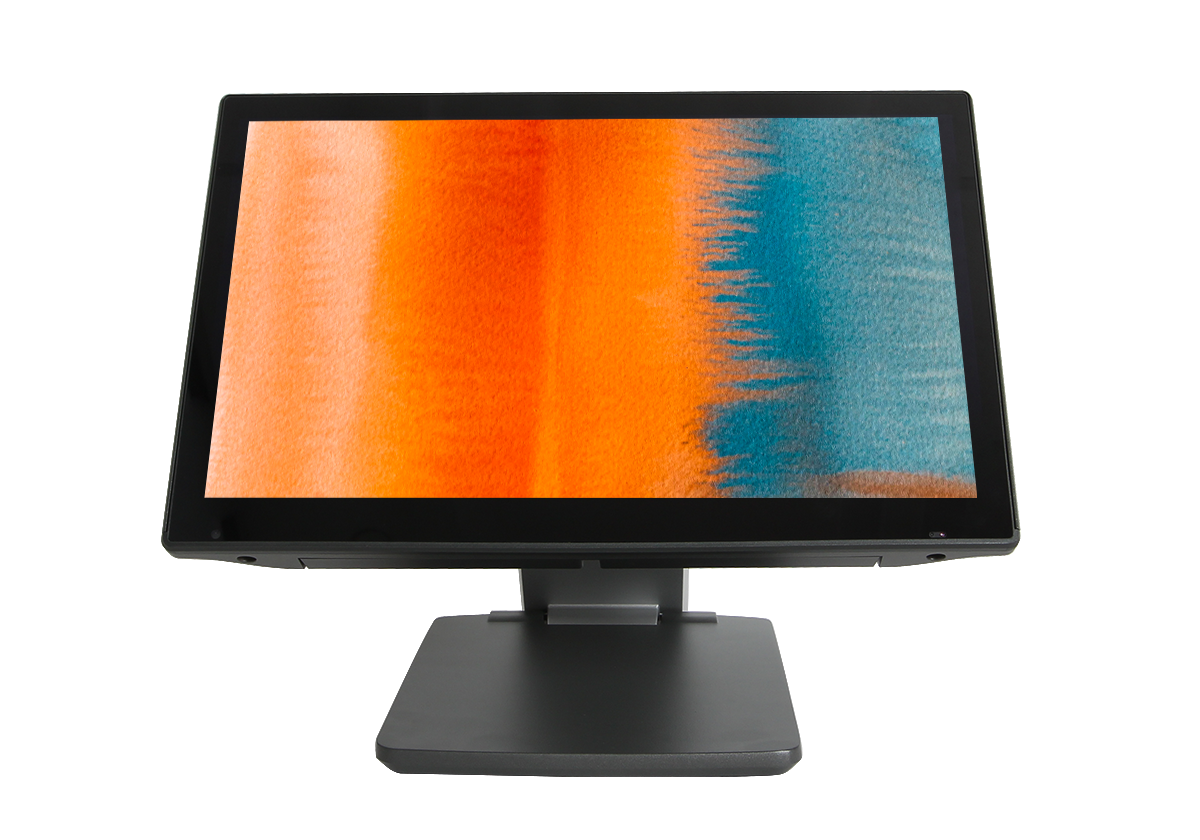

- 15.6" TFT , 1920 x 1080
觸控
- True-Flat PCAP
亮度
- 300 nits
平均故障間隔時間
- 30K Hours
像機
- 2MP Front Camera (Optional)
電源供應
- 20V / 130W External Adapter
作業系統
- Windows 10 CBB / Pro / LTSB / LTSC
- Linux
連接方式
- VESA 100 x 100 mm
認證
- FCC / CE Class B
外觀
- Aluminum Die-Casting + Plastic
- Galaxy Grey + Sliver
溫度
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
尺寸 (寬 x 高 x 深)
- Product: 368 x 257 x 315 mm
- Carton: 492 x 168 x 488 mm
重量
- Net 3.92 KG,
- Gross 6.7 KG
連接埠
- 1 x Video Port
- 1 x PUSB 24V
- 1 x FEC I/O (Reserved for additional DC output 5V/12V/24V, USB, or Com ports)
- 1 x USB DP / FEC DD (Select by BIOS)
- 3 x RJ45 (COM 1, COM2, Com3 ) RS232
- 4 x USB Type A (2 x USB 2.0, 2 X USB 3.0)
- 1 x RJ45 GigaLAN
